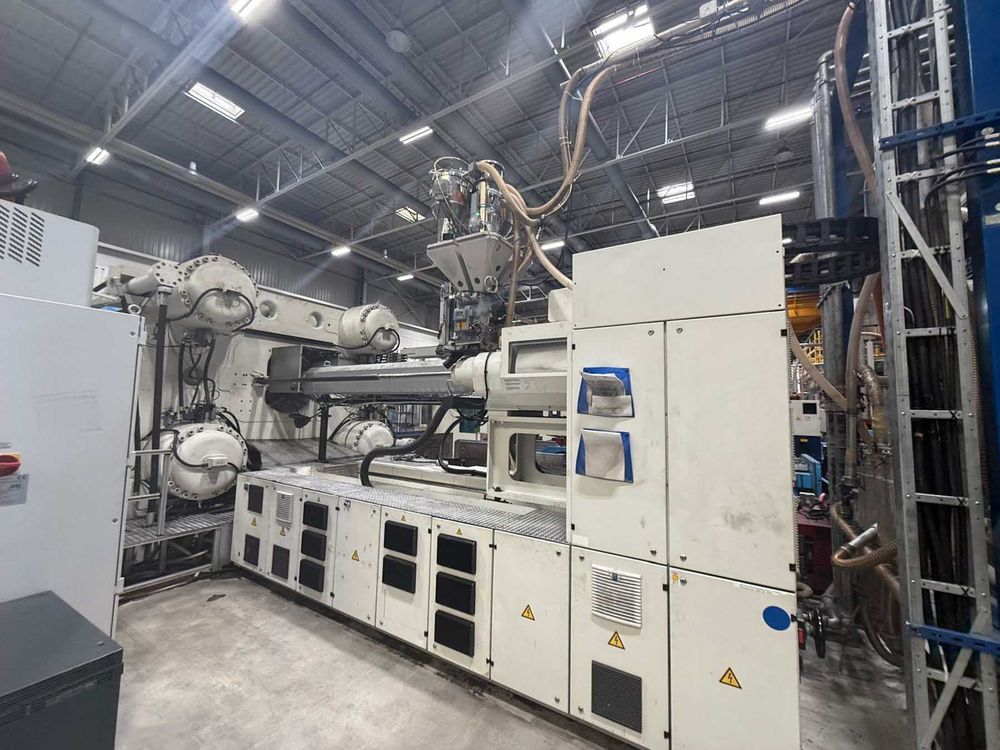

Engel Duo 11050 / 2300 2300 T

Clamping force 23.000 kN
Cascades / Sequential valve gates 10
Core pulls 2
Distance between tie-bars (h x v) 2.000 x 1.600 mm
Heating zones 36
Injection pressure 1.600 bar
Injection volume 8.870 cm³
Mould height max 1.890 mm
Mould height min 700 mm
Mould opening stroke max 3.800 mm
Operating hours 70.029
Platen size (h x v) 2.900 x 2.500 mm
Screw diameter 135 mm
Shot weight max 8.071 g
Weight 131.000 kg

Screw replaced in 2011, reinforced type – suitable for special materials.
Option for two-component injection (2-shot).
Mould tilting function.
Magnetic platens.
2 hydraulic core pulls. 36 heating zones for the mould.
10 hydraulic cascade zones installed (expandable).
Machine interface languages: English, German.
