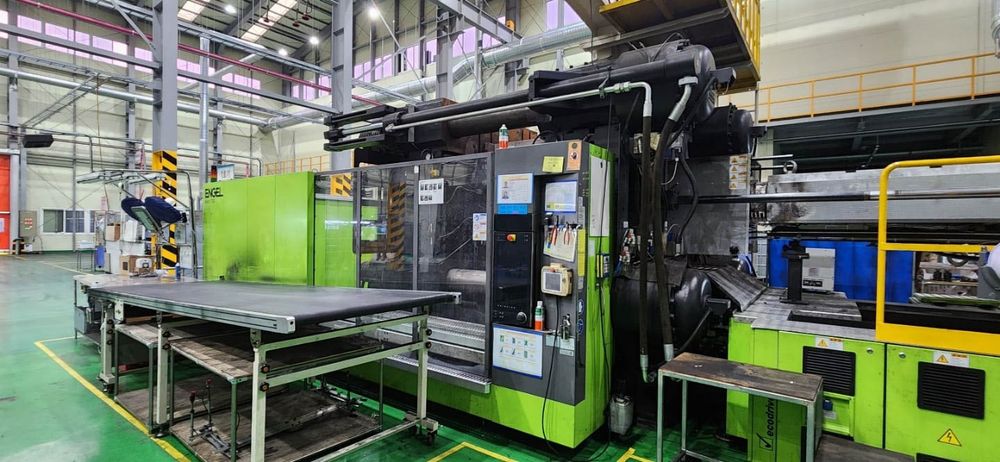

Engel Duo 16050 / 1700 Pro 1700 T

Screw diameter 135 mm
Barrel heating capacity 122 kW
Clamping force 17000 kN
Daylight between platens max 3250 mm
Distance between tie-bars (h x v) 1850 x 1415 mm
Dry cycle time 4.9 sec/mm
Ejector force 230 kN
Ejector stroke 300 mm
Heating zones 8
Injection pressure 1640 bar
Injection rate 1245 cm³/s
Injection volume 8870 cm³
Max mold weight 45 T
Mould height max 1500 mm
Mould height min 700 mm
Mould opening stroke max 2550 mm
Nozzle stroke / force max. 950 / 210 mm / kN
Oil tank capacity 3000 l
Plasticizing capacity (PS) 163 g/s
Platen size (h x v) 2420 x 2170 mm
Power: installed max 226 kW
Pump motor capacity 125 kW
Screw L/D ratio 25
Screw speed 100 rpm
Weight 99500 kg
