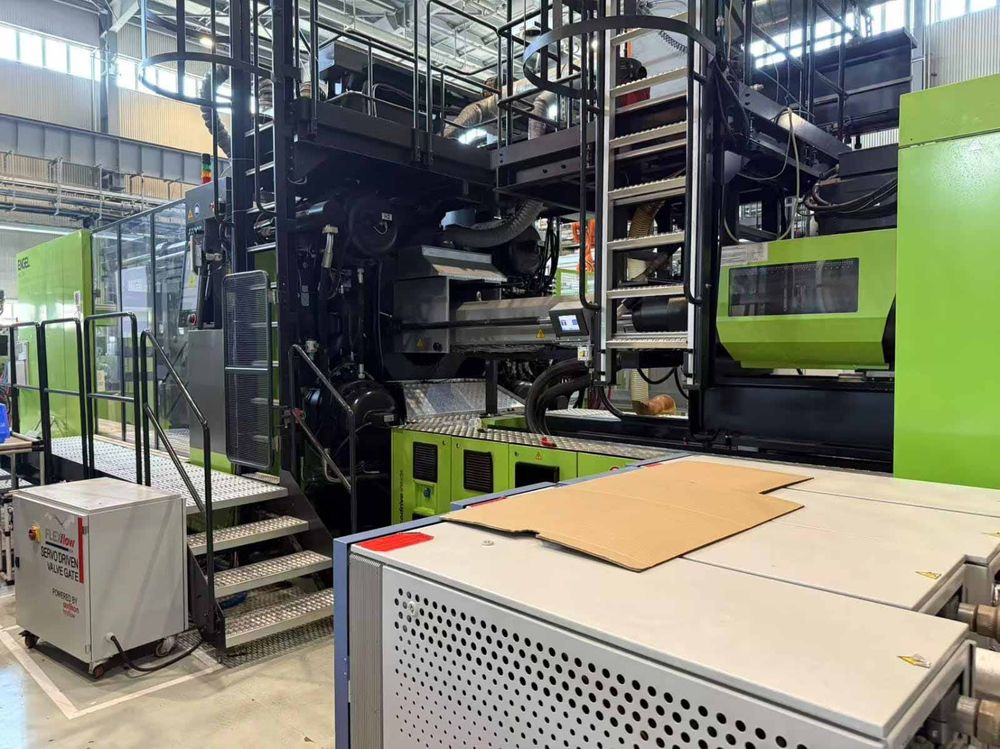

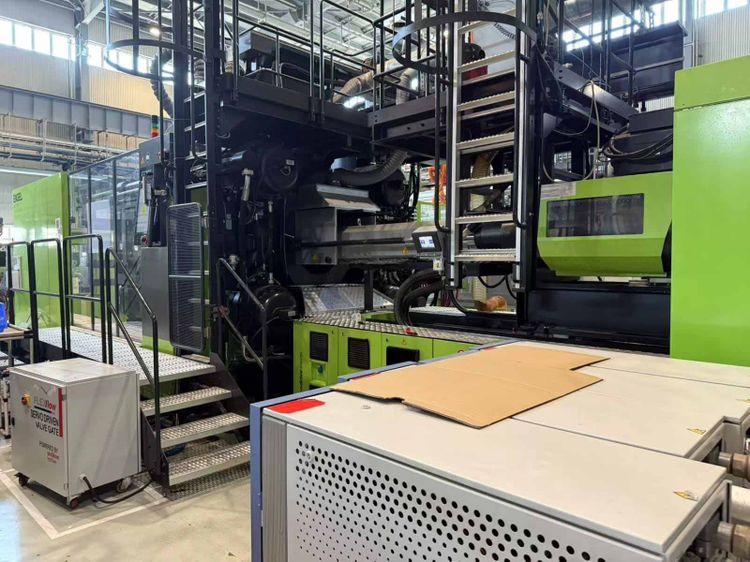

Engel Duo 16050 / 3200 3200 T

Screw diameter 135 mm
Air Valves yes
Cascades / Sequential valve gates yes
Clamping force 32.000 kN
Control CC300
Core pulls yes
Daylight between platens max 4.200 mm
Dimensions (long x wide x high) n/a mm
Dimensions (long x wide x high) 20.500 x 5.000 x 3.800 mm
Distance between tie-bars (h x v) 2.240 x 1.800 mm
Dry cycle time 6,8 sec/mm
Heating zones 7
Injection pressure 1.640 - 1.980 bar
Injection rate 1.245 cm³/s
Injection volume 8.870 cm³
Mould height max 2.000 mm
Mould height min 1.100 mm
Mould opening stroke max 3.100 mm
Nozzle stroke max 620 mm
Oil tank capacity 6.200 l
Operating hours 5.957
Platen size (h x v) 3.020 x 2.680 mm
Screw L/D ratio 22
Weight 145.000 / 65.000 kg
