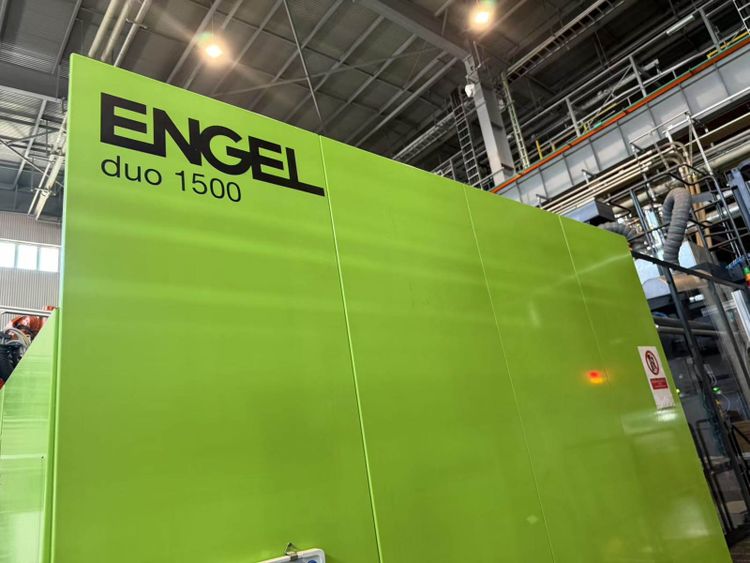

Engel Duo 7050 / 1500 1500 T

Screw diameter 105 mm
Clamping force 15.000 kN
Daylight between platens max 3.250 mm
Distance between tie-bars (h x v) 1.530 x 1.275 mm
Dry cycle time 4.8 sec/mm
Ejector stroke / force max. 300 / 230 mm / kN
Heating zones 7
Injection pressure 1.650 bar
Injection rate 800 cm³/s
Injection volume 4.160 cm³
Mold opening force 1.000 kN
Mould height max 1.360 mm
Mould height min 700 mm
Mould opening stroke max 2.550 mm
Nozzle stroke / force max. 950/150 mm / kN
Oil tank capacity 3.000 l
Platen size (h x v) 2.200 x 1.990 mm
Power: installed max 165 kW
Screw L/D ratio 22
Screw speed 130 rpm
Weight 68.000 + 28.000 kg
