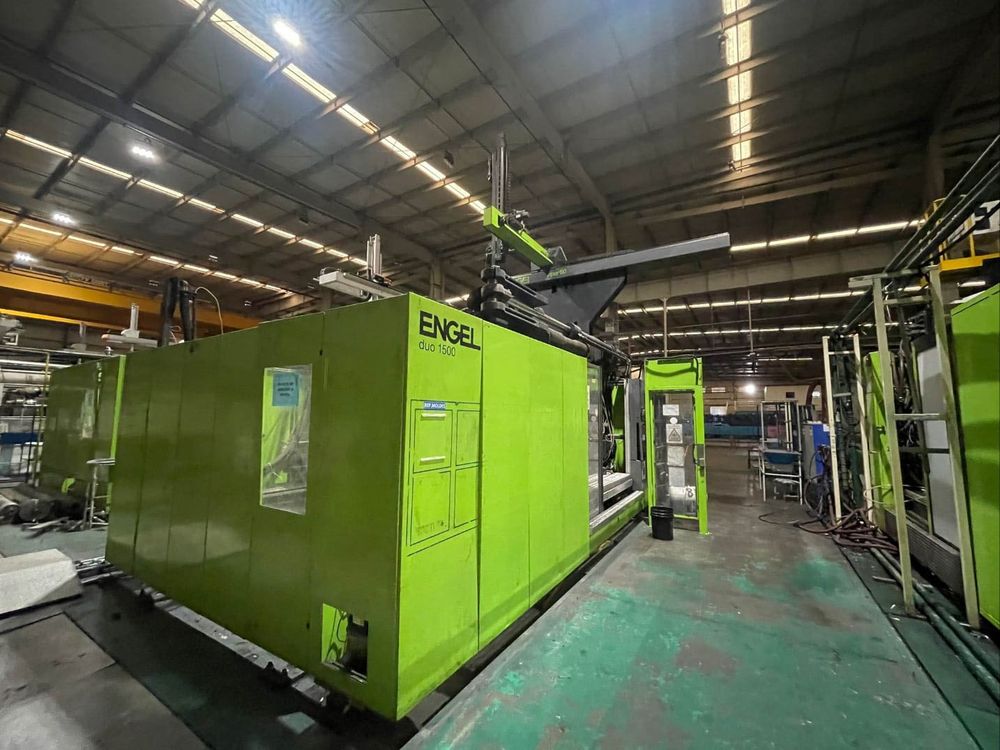

Engel Duo 7050 1500 WP 1500 T

Screw diameter 105 mm
Clamping force 15.000 kN
Daylight between platens max 3.250 mm
Distance between tie-bars (h x v) 1.865 x 1.430 mm
Dry cycle time 4.8 sec/mm
Ejector stroke / force max. 300/230 mm / kN
Heating zones 7
Injection pressure 1.650 bar
Injection rate 800 cm³/s
Injection volume 4.160 cm³
Mold opening force 1.000 kN
Mould height max 1.360 mm
Mould height min 700 mm
Mould opening stroke max 2.550 mm
Nozzle stroke / force max. 950/150 mm / kN
Oil tank capacity 1.800 l
Platen size (h x v) 2.420 x 2.170 mm
Power: installed max 161 kW
Screw L/D ratio 22
Screw speed 130 rpm
Weight 66.000 + 17.000 kg
