Engel e-victory 440/160 CC300 ecodrive 160 T

Clamping unit
Clamping force160 ton
Opening stroke900 mm
Mould height min.300 mm
Mould height max.600 mm
Platen size (h x v)750 X 750 mm

Injection unit
Screw diameter35 mm
Injection volume168 cm³
Shot weight151 g
Injection pressure2400 bar

Measurements and weight
Dimensions5,7 X 1,8 X 2,2 m
Machine weight10200 kg

Additional Information:Tie-bar-less + electric injection = maximum flexibility and precision

ENGEL e-victory 440/160:
This is a hybrid machine (servo-hydraulic + electric)
How it works
Electric part:
* Injection unit (screw movement)
* Ensures very high precision and process stability

Hydraulic part:
Clamping unit (mould closing)
Maintains clamping force efficiently without continuous energy consumption
This system combines:
The precision of an all-electric machine
With the power and efficiency of a hydraulic system
This is a modern servo-hydraulic injection moulding machine from
the well-established ENGEL e-victory series, known for its energy efficiency,
high precision, and tie-bar-less design.

The machine has a clamping force of 160 tons and is ideally suited
for technical plastic parts as well as demanding applications in industries such as
automotive, medical, and general manufacturing.

Key features:
* Tie-bar-less design for maximum mould flexibility
* Servo-hydraulic drive for high energy efficiency
* Precise and stable processing performance
* Compact footprint with a large mould installation area
* Modern ENGEL control system

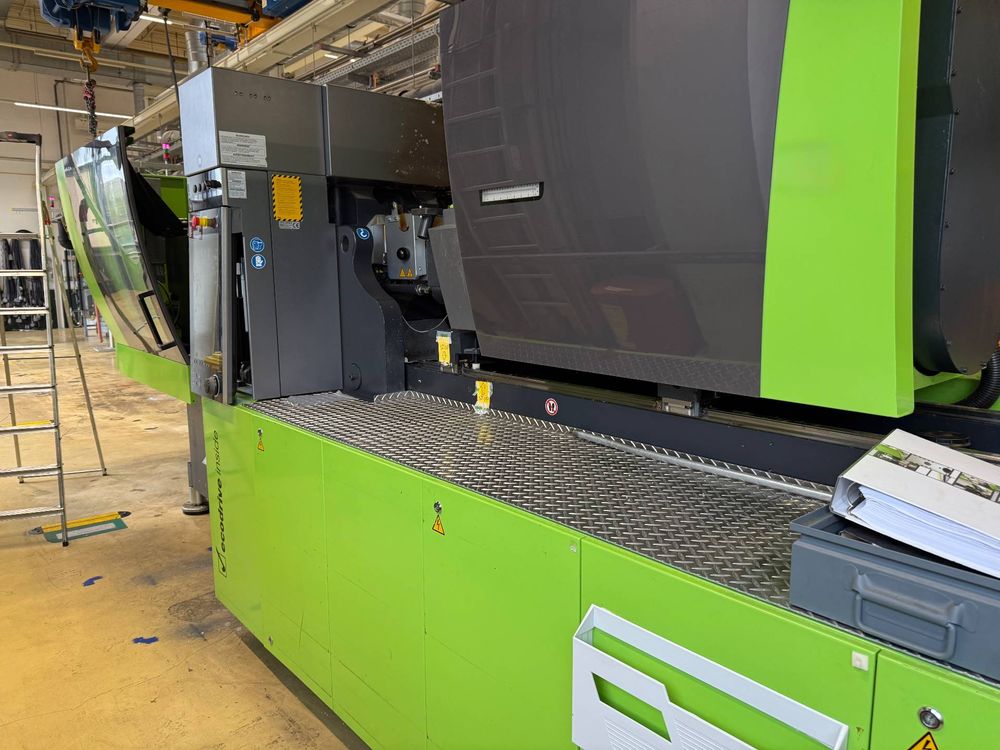

The machine was manufactured in 2016 and appears to be in very good condition,
both technically and visually, as can be seen in the pictures.
