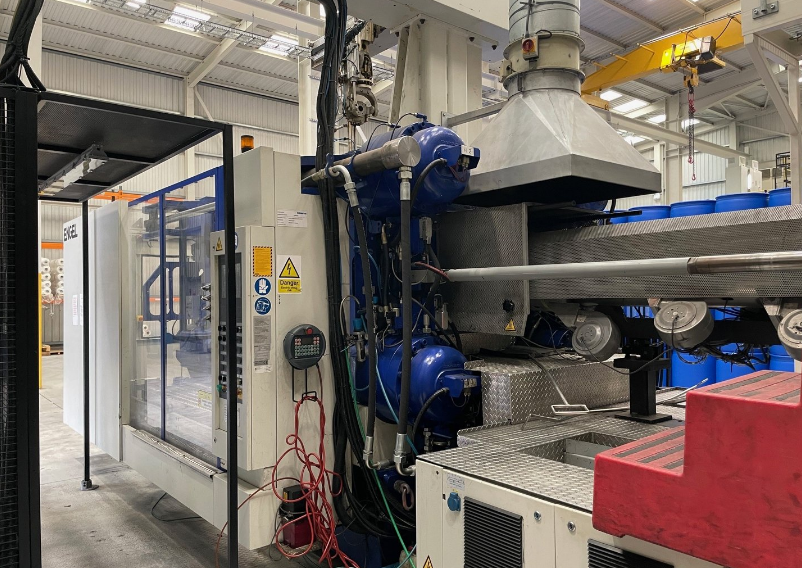

Engel ES 16050-800 Duo 800 T
EUROPE (Western and Northern)
Steering: CC100
Year of construction: 2007
Technical data closing side
Closing force: 8000 kN
Holmass hxv: 1170 x 1000 mm
Plate size hxv: 1550 x 1470 mm
Minimum installation height: 500 mm
Maximum installation height: 1100 mm
Maximum plate spacing: 2100 mm
Opening path: 1600 mm
Ejector stroke: 300 mm
Ejector force: 180 kN
Centering movable plate D: 200 mm
Centering fixed plate D: 200 mm
Tool weight: 21600 kg
Technical data spray side
Screw diameter: 135 mm
Displacement: 8870 cc
Injection pressure: 1640 bear
Screw length: 22 l/d
Screw stroke: 620 mm
Screw speed: 100 min
Number of heating zones: 7
Nozzle path: 950 mm
Dimensions & Weight
Machine dimensions LxWxH: 11.81 m x 3.2 m x 2.9 m
Total weight: 51000 KG
equipment
Screen text Czech
CEE socket 32A
6-way hydraulic cascade control
Core pull hydraulic 2x
Core pull hydraulic 2x
Air valve fixed WAP
Machine including handling
Machine with water battery
Machine without material hopper
Leveling elements
Interface for handling
Interface for temperature control device
Tool heating 12x
Tool heating 8x
Technical data handling
Machine type: Linear
Make: ANGEL
Steering: ERC 64/1-F
Year of construction: 2007
Handling weight: 25 kg
X-axis: 1300 mm
Y-axis: 2200 mm
Z-axis: 4760 mm
