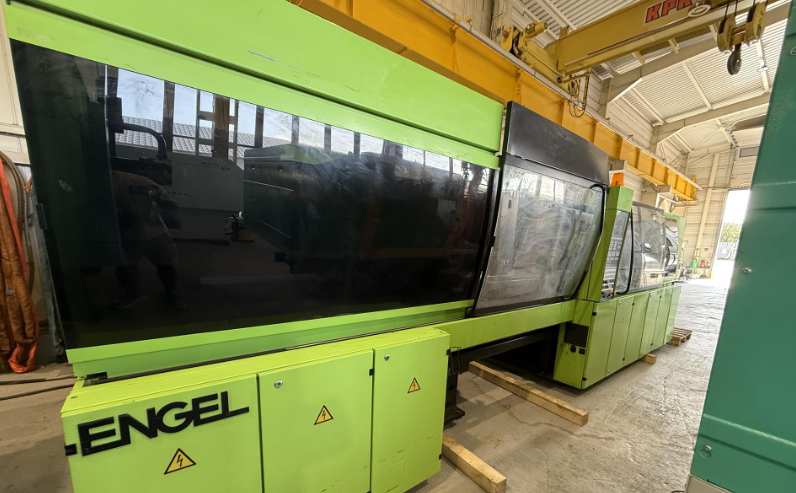

Engel ES 1800/300 HL-V 300 T

Clamping force: 300 t
Screw diameter: 70 mm
Shot weight: 935 g
Shot volume: 1039 cm3
Screw speed: 298 rpm
Injection flow rate: 349 g/sec
Injection time: 28 sec
Injection rate², injection pressure increased: 1039 cm³
Max. stroke volume¹: 983 cm³
Max. shot weight²: 1441 g
Specific injection pressure: 1734 bar
Opening stroke: 850 mm
Ejector force: 82 kN
Ejector stroke: 200 mm
Max. daylight: 1700 mm
Mould mounting plates: 1050 × 1050 mm
Enlarged mounting plate: 1050 × 950 mm
Type: Horizontal
Drive: Hydraulic
Robot ERC 53/3- EA
