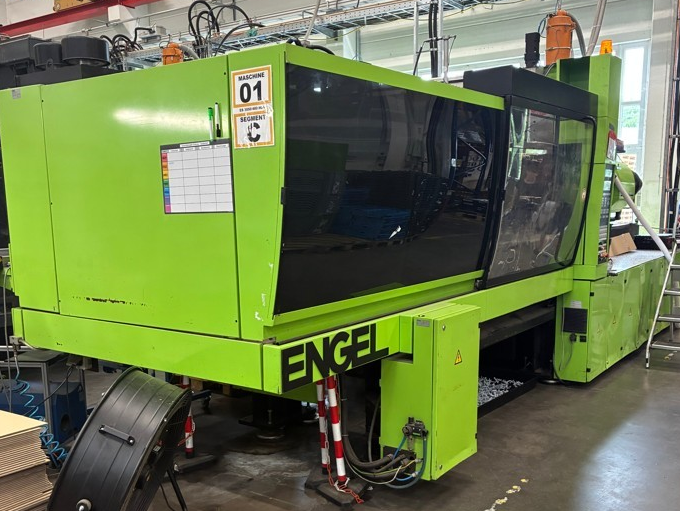

Engel ES 3550/400 HL-Victory 400 T

Horizontal injection molding machine

Injection Unit:
- Screw diameter: 90 mm
- Injection volume: 2,480 cm3
- Maximum injection weight : 2,232 g
- Injection pressure : 1,360 bar
- Increased injection pressure: 1,600 bar
- Heating power: 64 kW

Clamping Unit:
- Maximum clamping force: 4,000 kN
- Platens: 1,300 x 740 mm
- Enlarged platens: 1,300 x 1,080 mm
- Minimum mold installation height: 350 mm
- Maximum platen spacing: 1,300 mm
- Opening stroke: 950 mm
- Core pull block: 2-way on BAP
- Control: EC 100

Drive:
- Pump drive power: 55 kW
- Weight on closing side approx.: 25,000 kg
- Weight on injection side approx.: 8,000 kg

Removal handling/robot: ER HLI 81 integrated
Current operating hours approx.: 107,268 h

Available from approx. September/October 2026
The system is still under construction and in production.
