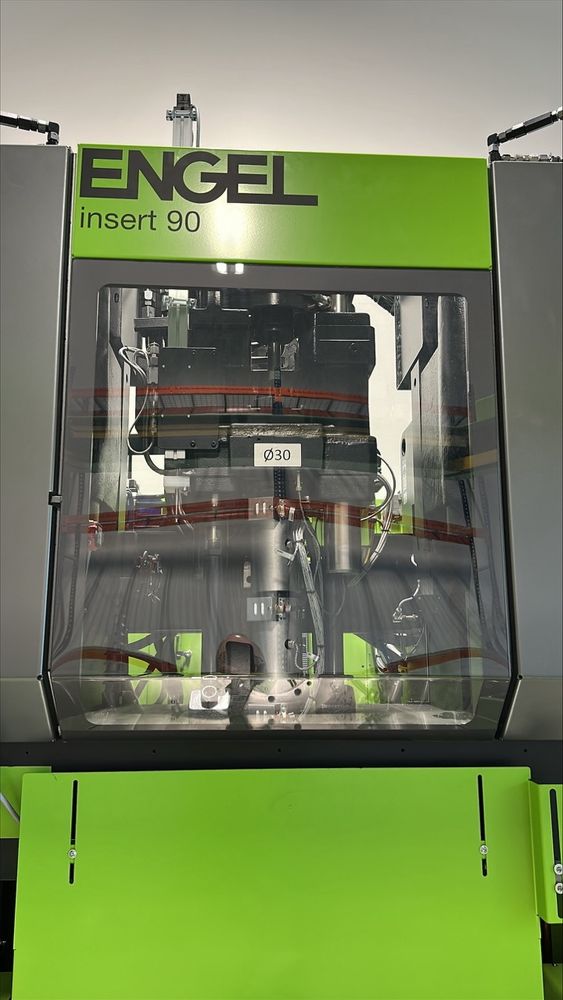

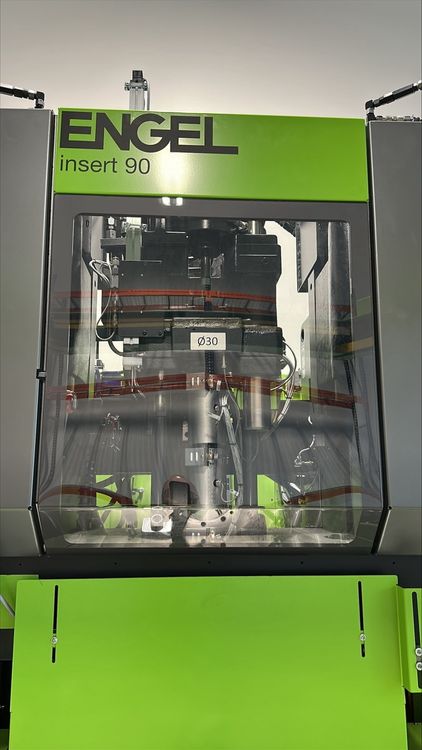

Engel Insert 90 80 T

Plasticizing 1
Screw diameter: 30 mm
Screw diameter options: 22 / 25 / 30 / 35 mm
Screw stroke: 150 mm
Maximum injection capacity: 106 cm³
Screw retraction time: 2.8 s
Screw torque: 250 Nm
Recovery rate (3-zone screw): 16.8 g/s

Injection 1
Injection rate: 149 cm³/s
Injection pressure (regenerative): 1450 bar
Injection pressure (max): 2210 bar

Nozzle 1
Nozzle stroke: 530 mm
Nozzle contact pressure: 28.0 kN

Material Cylinder 1
L/D ratio: 20.5
Heating zones incl. nozzle: 4
Heating wattage: 6.8 kW

Clamping Unit
Clamping force: 800 kN
Opening force + cylinder tolerance: 250 kN
Maximum distance between platen: 550 mm
Minimum mold height: 200 mm
Max. ejector stroke vertical: 300 mm
Max. weight moving platen: 500 kg
Max. mold weight fixed platen: 1000 kg
Max. mold weight total: 1500 kg
Dry cycle (stroke): 1.8 s
Dry cycle (opening): 2.0 s

Ejector
Ejector stroke: 160 mm
Ejector force: 20.1 kN

Drive Unit
Oil reservoir capacity – Injection unit: 198 l
Oil reservoir capacity – Clamping unit: 30 l

Oil Cooler
Maximum cooling power (25°C water inlet temp.): 7.40 kWcool
Flow rate: 1.4 m³/h
Machine Basics
Weight (without oil): 8.0 t
Weight total (without oil): 9.1 t
Weight injection unit (without oil): 3.4 t
Weight clamping unit (without oil): 5.7 t
Total power: 21.0 kW
