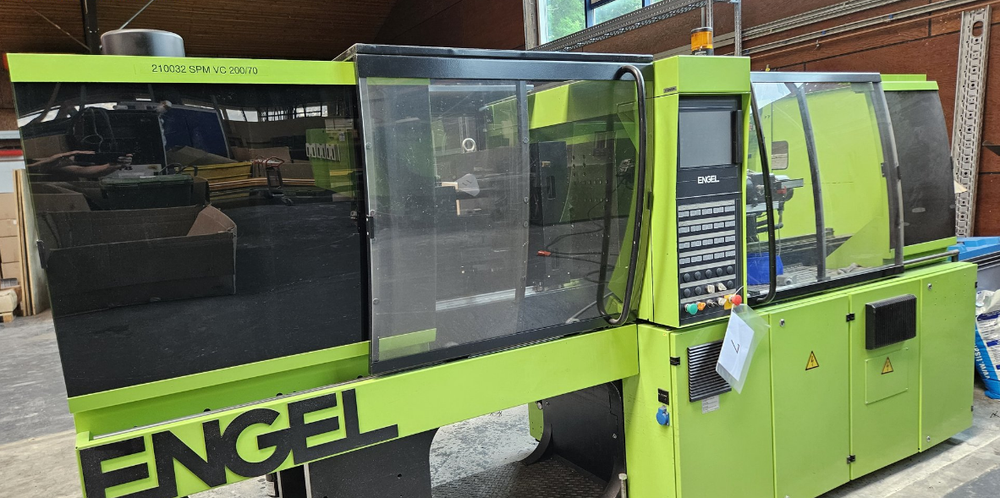

Engel Victory 200/70 Tech 70 T

Steering: CC100
Year of construction: 2004
Operating hours: 83909 h

Technical data Closing side
Closing force: 700 kN
Plate size hxv: 670 x 600 mm
Minimum installation height: 144 mm
Maximum plate spacing: 594 mm
Opening method: 450 mm
Ejector stroke: 100 mm
Ejector force: 40 kN
Centering movable plate D: 125 mm
Centering fixed plate D: 125 mm
Tool weight: 675 kg

Technical data spray side
Screw diameter: 25 mm
Engine displacement: 69 cc
Injection pressure: 2090 bear
snail stroke: 140 mm
worm speed: 480 min
Injection flow to the open air: 104 g/s PS
Number of heating zones: 4
Nozzle path: 200 mm

Dimensions & Weight
Machine dimensions (L x W x H): 4 m x 1.45 m x 2 m
Total weight: 5200 kg

equipment
Bildschirmtext German
English screentext
CEE socket 16A
Hydraulic core pull 1x
Air valve 1x
Machine with material hopper
Machine with water battery
Leveling elements
Schuko socket 10A
