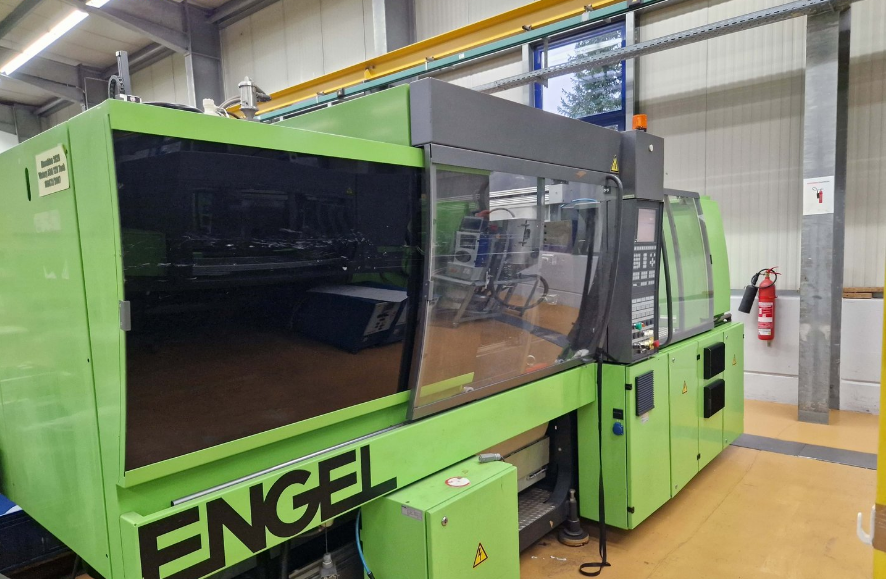

Engel Victory 330-120 Tech 120 T

Control: CC100
Year of manufacture: 2007
Operating hours: 68651 h

Technical Data Closing Side
Closing Force: 1200 kN
Plate size hxv: 740 x 680 mm
Minimum installation height: 300 mm
Maximum panel spacing: 800 mm
Opening stroke: 500 mm
Ejector stroke: 130 mm
Ejector force: 40 kN
Centering movable plate D: 125 mm
Centering fixed plate D: 125 mm
Tool weight: 825 kg

Technical data injection side
Screw diameter: 35 mm
Displacement: 154 cc
Injection pressure: 1600 bar
Screw length: 20 l/d
Screw stroke: 160 mm
Screw speed: 400 min
Injection flow to the atmosphere: 151 g/s PS
Number of heating zones: 4
Nozzle path: 250 mm

Dimensions & Weight
Machine dimensions L x W x H: 4.5 m x 2.1 m x 2.1 m
Total weight: 7300 kg

Equipment
German screen text
CEE socket 16A
Hydraulic core pull 2x
Machine including conveyor belt
Machine including protective enclosure
Machine without material hopper
Leveling elements
Interface for ejector plate safety device
Schuko socket 10A

Technical data Handling
Machine type: Linear
Manufacturer: ENGEL
Control: ER-HLI41VC
Year of manufacture: 2007
