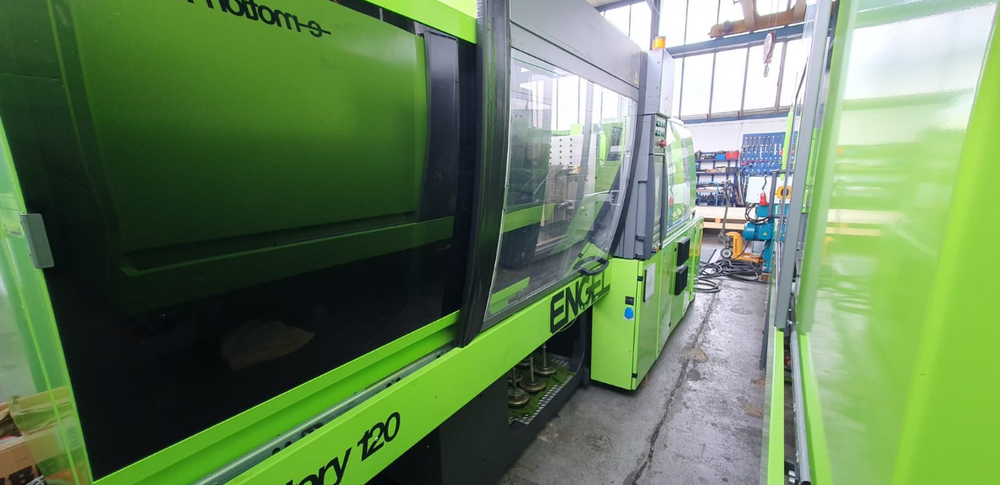

Engel Victory 650-120 Tech 120 T

Control unit: EC200 A02
Year of manufacture: 2008
Operating hours: 59934 h

Technical Data Closing Side
Closing Force: 1200 kN
Plate size hxv: 740 x 680 mm
Minimum installation height: 300 mm
Maximum panel spacing: 800 mm
Opening travel: 507 mm
Ejector stroke: 130 mm
Ejector force: 40 kN
Centering movable plate D: 125 mm
Centering fixed plate D: 125 mm
Tool weight: 825 kg

Technical data injection side
Screw diameter: 45 mm
Displacement: 318 cc
Injection pressure: 1525 bar
Screw length: 20 l/d
Screw stroke: 200 mm
Screw speed: 290 min
Injection flow to the atmosphere: 220 g/s PS
Number of heating zones: 5
Nozzle path: 300 mm

Dimensions & Weight
Machine dimensions L x W x H: 4.86 m x 1.5 m x 2.1 m
Total weight: 7600 kg

Equipment
German screen text
CEE socket 16A
Hydraulic core pull 2x
Air valve 2x
Machine with water battery
Machine without material hopper
Leveling elements
10A Schuko socket
Tool heater 8x
