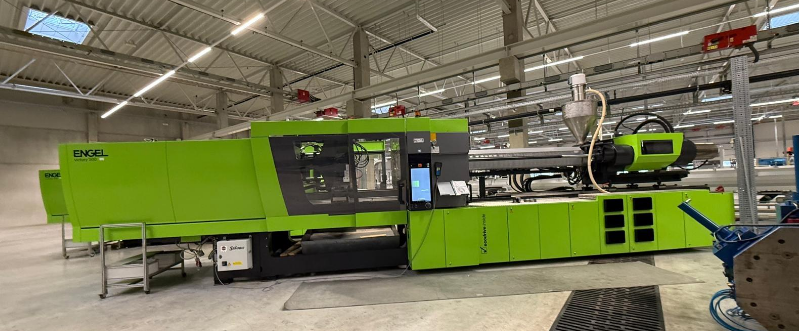

Engel Victory 7050/500 tech 500 T

Control unit: CC300
Operating hours: 565 h

Clamping Unit:
Clamping force: 500 tons
Opening stroke: 1100 mm
Distance between tie bars: 1500 × 1285 mm
Platen size: 1500 × 1285 mm
Minimum mould height: 500 mm
Maximum daylight (open distance): 1600 mm

Injection Unit:
Screw diameter: 120 mm
Screw length (L/D): 22 D
Injection volume: 5430 cm³
Maximum injection pressure: 1600 bar

General Data:
Motor power: 98 kW
Heating power: 30 kW
Clamping unit weight: 31 tons
Injection unit weight: 15 tons
Machine dimensions (L × W × H): 10.50 m × 2.30 m × 2.30 m

Options:
Core pullers: 3
Robot interface: No
Bi-metallic screw/barrel: Yes
Other equipment: STAUBLI magnetic platens, 24 hot runner heating zones

Note:
The machine has very low operating hours (565 h) and
belongs to the modern ENGEL Victory tie-bar-less series,
ideal for large moulds and high-precision production.
