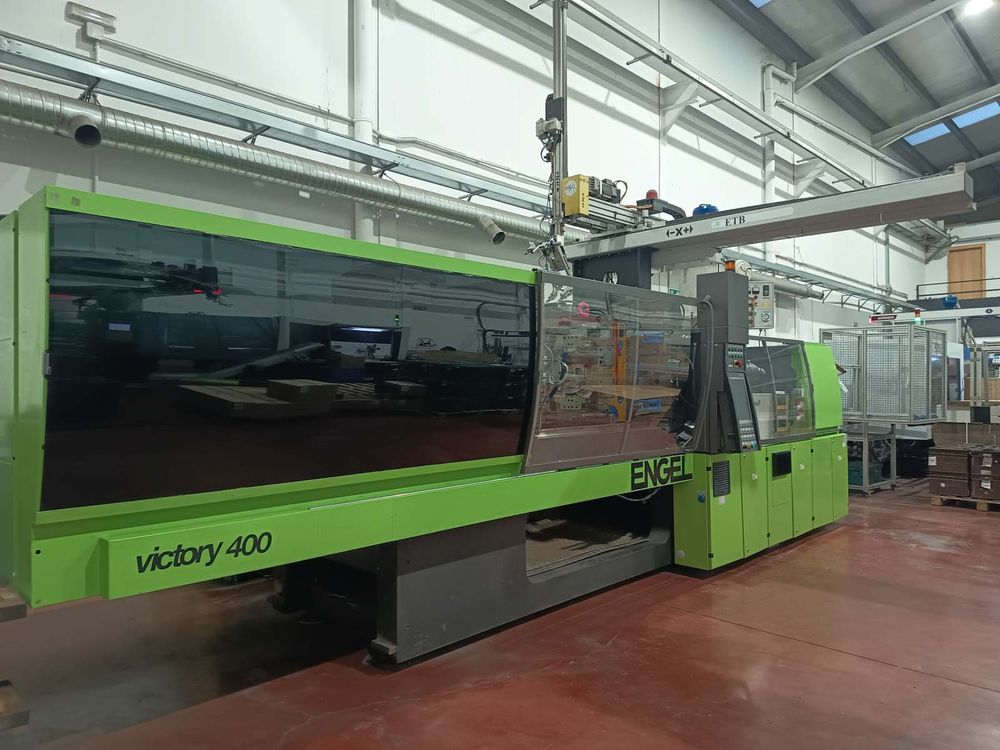

Engel Victory VC 1050 / 400 Tech Pro 400 T

High Speed 0,4 mm withc accumulator con Robot
Clamping force 4.000 kN
Control CC200
Daylight between platens max 1.450 mm
Dimensions (long x wide x high) 7.100 x 2.200 x 2.300 mm
Ejector force 96 kN
Injection pressure 2.050 bar
Injection rate 255 cm³/s
Injection volume 510 cm³
Mould height min 350 mm
Mould opening stroke max 950 mm
Oil tank capacity 955 l
Operating hours 6.000
Platen size h 1.200 mm
Platen size v 1.100 mm
Power: installed max 45 kW
Screw diameter 55 mm
Screw L/D ratio 24
Screw speed 230 rpm
Shot weight max 469 g
Weight 22.300 kg
