1/1

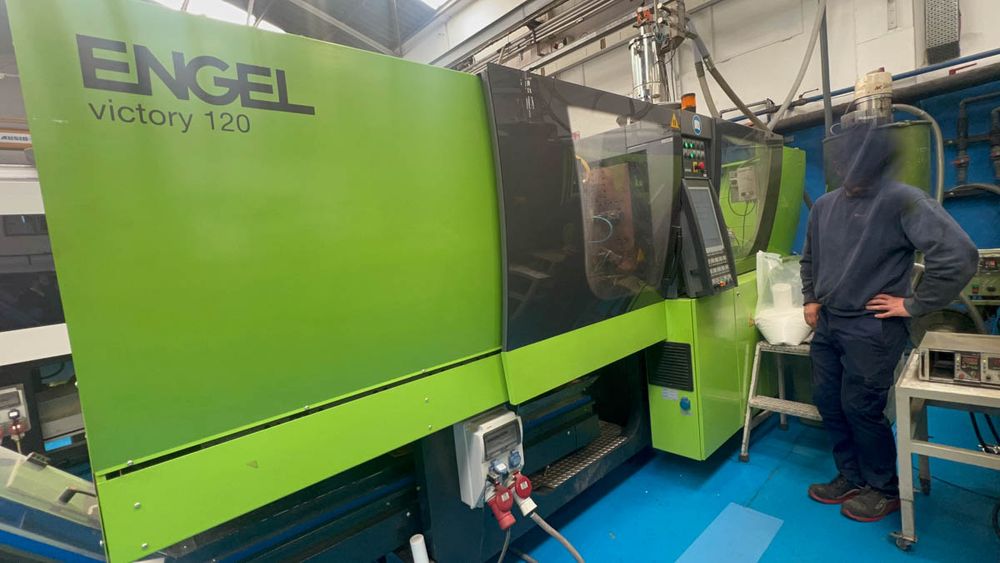

Engel Victory VC 200 / 120 Spex 120 T
Ref :
2786643-6-GO
Condition :
Used
Manufacturer :
Engel
Model :
Victory VC 200 / 120 Spex
Capacity :
120 T
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Clamping force 1.200 kN
Control CC300
Daylight between platens max 800 mm
Dimensions (long x wide x high) 4.900 x 1.500 x 2.000 mm
Ejector stroke / force max. 130 / 40 mm / kN
Injection pressure 1.030 /1.595 bar
Injection volume 318 cm³
Mold opening force 38 kN
Mould height min 300 mm
Mould opening stroke max 500 mm
Nozzle stroke / force max. 300 / 52 mm / kN
Oil tank capacity 300 l
Operating hours 45.000
Platen size (h x v) 740 x 470 mm
Power: installed max 22 kW
Screw diameter 40 mm
Screw L/D ratio 24,8
Screw speed 550 rpm
Weight 7.200 kg
