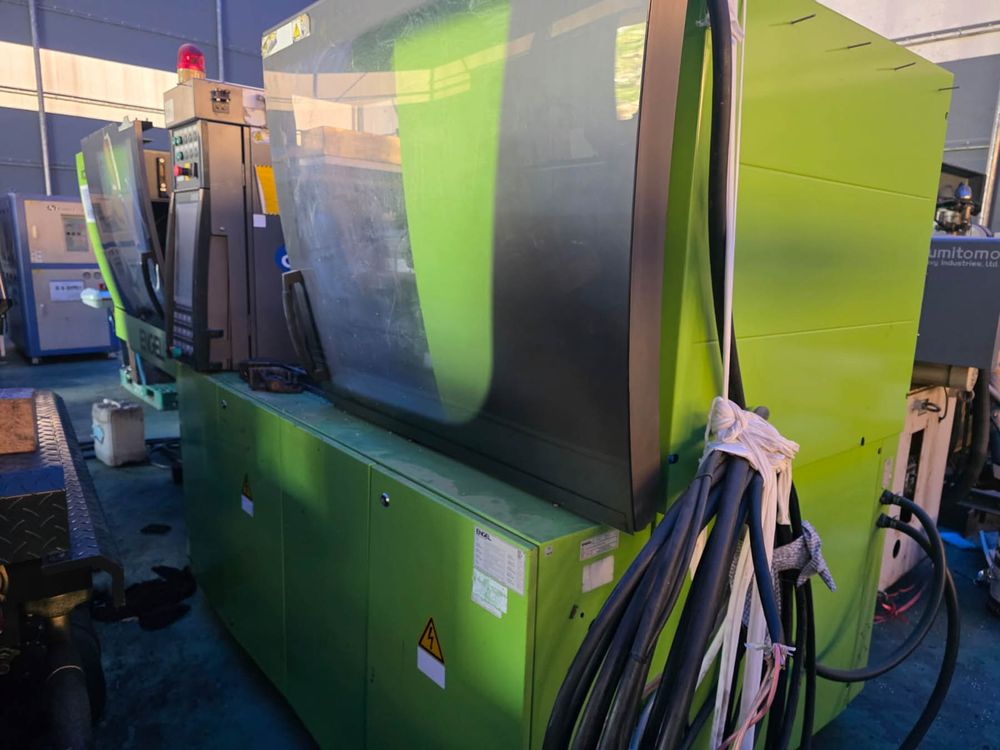

Engel Victory VC 200 / 120 Tech Pro 120 T

Clamping force 1.200 kN
Control CC200
Daylight between platens max 800 mm
Dimensions (long x wide x high) 4.400 x 1.500 x 2.000 mm
Ejector stroke / force max. 130 / 40 mm / kN
Injection pressure 2.090 / 2.400 bar
Injection rate 104 cm³/s
Injection volume 69 cm³
Mold opening force 38 kN
Mold opening force 507 kN
Mould height min 300 mm
Mould opening stroke max 500 mm
Nozzle stroke / force max. 200 / 28 mm / kN
Oil tank capacity 300 l
Platen size (h x v) 740 x 470 mm
Power: installed max 22 kW
Screw diameter 25 mm
Screw L/D ratio 24,8
Screw speed 550 rpm
Shot weight max 63 g
Weight 7.200 kg
