1/1

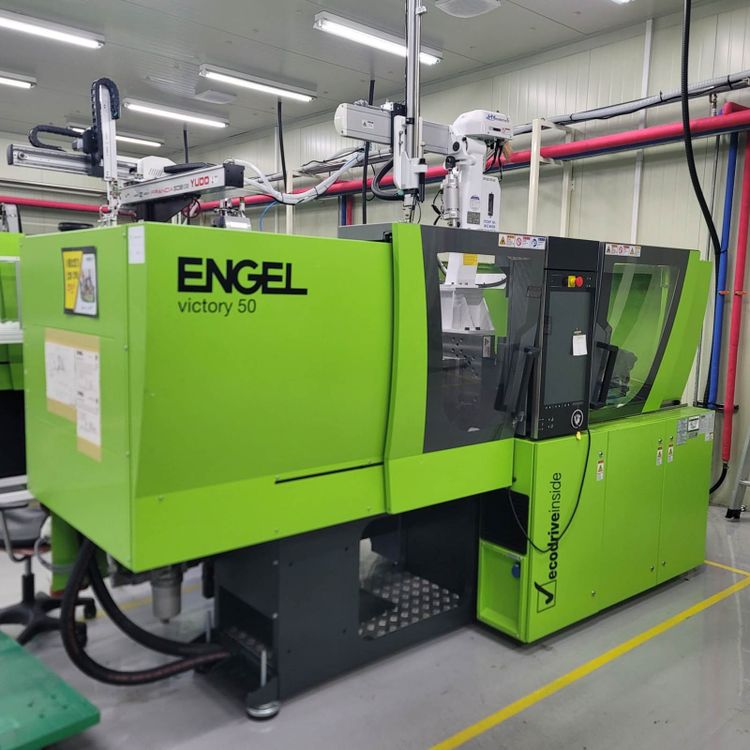

Engel Victory VC 200 / 50 Tech Pro 50 T
Ref :
2768718-6-GO
Condition :
Used
Manufacturer :
Engel
Model :
Victory VC 200 / 50 Tech Pro
Capacity :
50 T
Year(s) :
2019
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Last check :
07 Jan. 2026
Clamping force 500 kN
Control CC200
Daylight between platens max 600 mm
Dimensions (long x wide x high) 3.400 x 1.300 x 1.800 mm
Ejector force 40 kN
Injection pressure 2.400 bar
Injection rate 104 cm³/s
Injection volume 69 cm³
Mould height max 200 mm
Mould opening stroke max 400 mm
Nozzle stroke / force max. 28 mm / kN
Nozzle stroke max 230 mm
Oil tank capacity 135 l
Platen size h 500 mm
Platen size v 450 mm
Screw diameter 25 mm
Screw L/D ratio 24,8
Screw speed 480 rpm
Weight 2.700 kg
