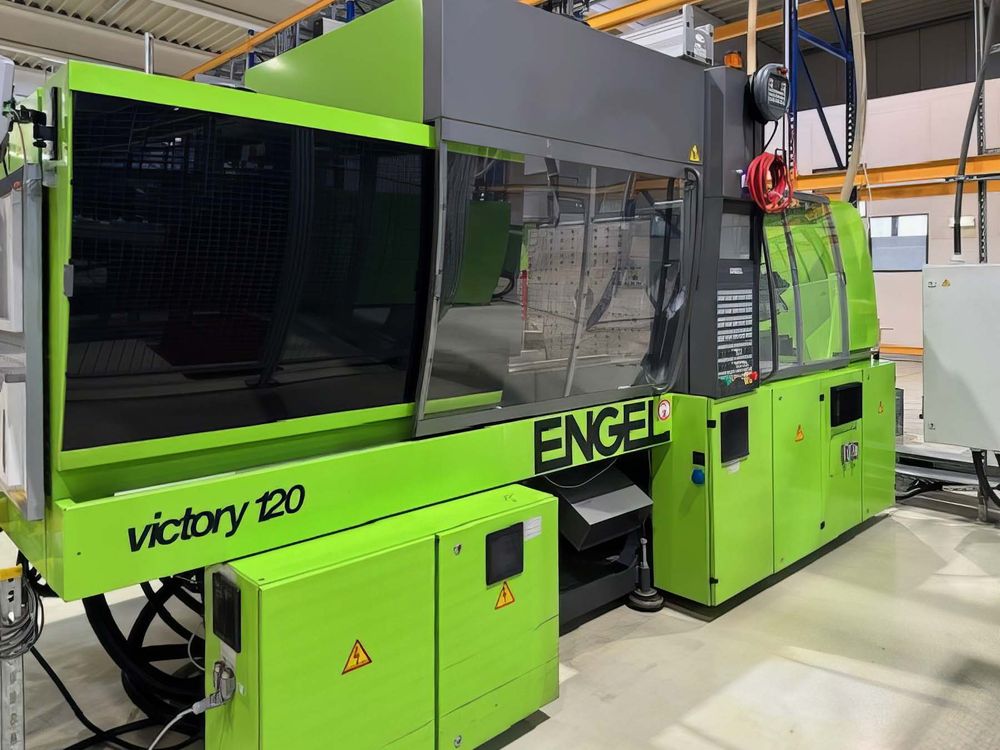

Engel Victory VC 330 / 120 Tech Pro 120 T

Includes ERC 23/1-F with integrated storage belt
(opposite side of operation) +750 mm,
needle valve (hydraulic + pneumatic),
interface for colour dosing unit and temperature control unit.

Clamping force 1.200 kN
Daylight between platens max 800 mm
Dimensions (long x wide x high) 4.400 x 1.500 x 2.000 mm
Ejector force 47 kN
Heating zones 2
Injection pressure 2.175 bar
Injection volume 113 cm³
Mould height max n/a mm
Mould height min 300 mm
Mould opening stroke max 500 mm
Nozzle stroke max 250 mm
Oil tank capacity 300 l
Platen size (h x v) 790 x 680 mm
Power: installed max 25 kW
Screw diameter 35 mm
Screw speed 400 rpm
Shot weight max 141 g
Weight 7.300 kg
