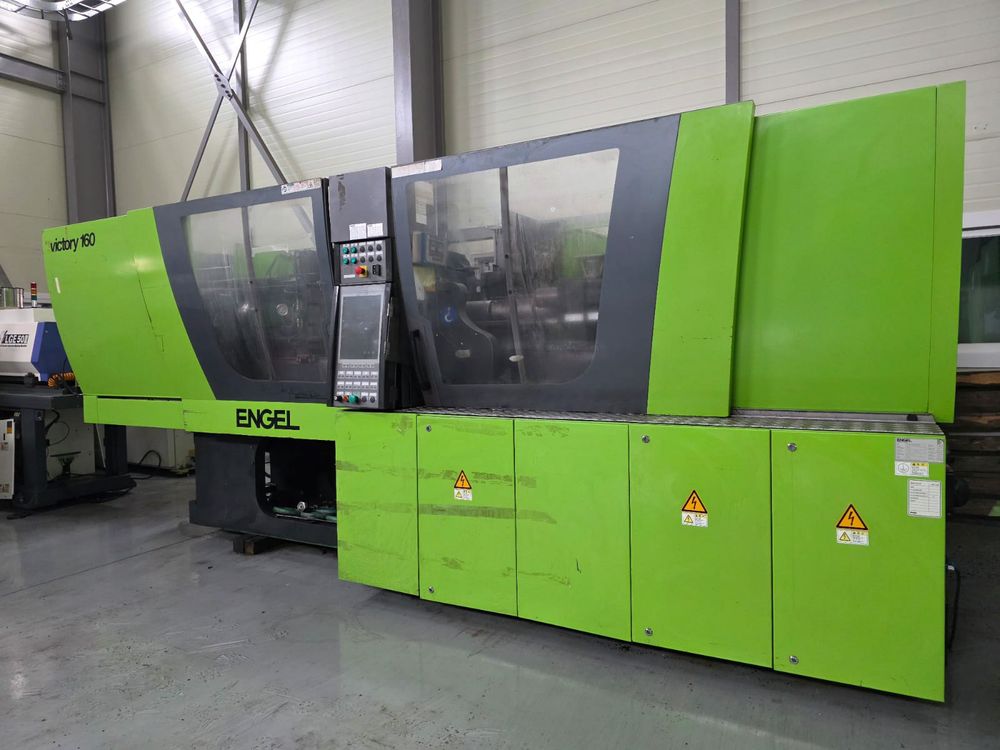

Engel Victory VC 500 / 160 Tech Pro 160 T

Clamping force 1.600 kN
Control CC200
Daylight between platens max 900 mm
Dimensions (long x wide x high) 5.800 x 1.700 x 2.400 mm
Ejector force 61 kN
Injection pressure 1.300/2.020 bar
Injection rate 198 cm³/s
Injection volume 251 cm³
Mould height max 300 mm
Mould opening stroke max 600 mm
Nozzle stroke / force max. 250 / 47 mm / kN
Nozzle stroke max 160 mm
Oil tank capacity 460 l
Platen size h 750 mm
Platen size v 750 mm
Power: installed max 28 kW
Screw diameter 40 mm
Screw L/D ratio 24
Screw speed 400 rpm
Weight 9.500 kg
