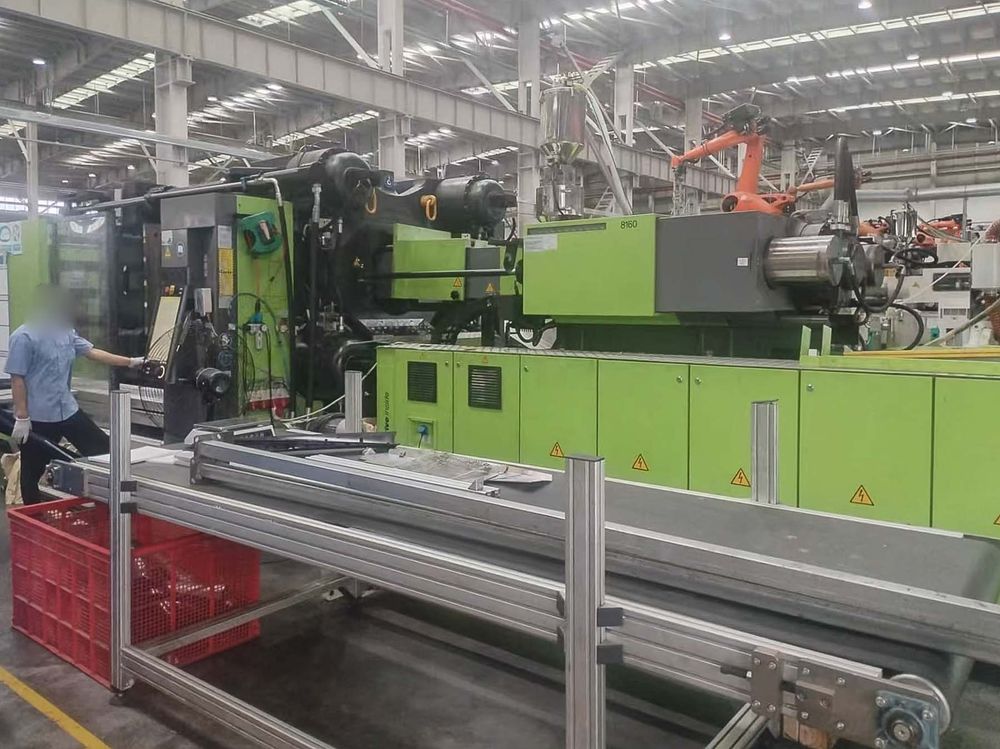

Engel Victory VC 8160 900 WP Pro 500 T

Air Valves 2 (mobile plate) + 1 (fixed plate)
Clamping force 9.000 kN
Control CC200
Core pulls 2 (mobile plate) + 1 (fixed plate)
Daylight between platens max 1.600 mm
Dimensions (long x wide x high) 5.571 x 2.300 x 2.340 mm
Distance between tie-bars (h x v) n/a mm
Dry cycle time 4,35 @ 650 sec/mm
Ejector stroke / force max. 250 / 96- 47 mm / kN
Heating zones 24
Injection pressure 2.000 bar
Injection rate 943 cm³/s
Injection volume 4.070 cm³
Mold opening force 237 kN
Mould height min 500 mm
Nozzle stroke max 600 mm
Oil tank capacity 1.285 l
Platen size (h x v) 1.350 x 1.285 / 1.500 x 1.285 mm
Power: installed max 150 kW
Screw diameter 105 mm
Screw L/D ratio 22 / 25
Screw speed 165 / 200 rpm
Weight 28 + 30 kg
