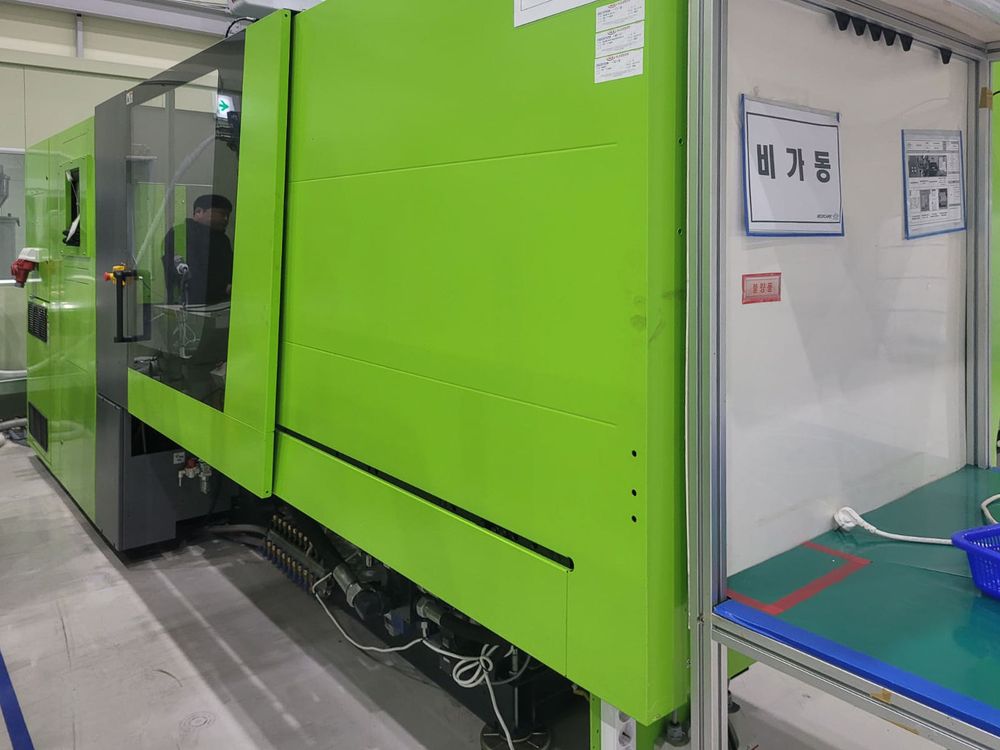

Engel Victory VC 860 / 160 Tech Pro 160 T

Clamping force 1.600 kN
Control CC300
Core pulls 2
Daylight between platens max 900 mm
Dimensions (long x wide x high) 5.800 x 1.700 x 2.400 mm
Ejector force 61 kN
Injection pressure 2.330 bar
Injection rate 211 cm³/s
Injection volume 422 cm³
Mould height max - mm
Mould height min 300 mm
Mould opening stroke max 600 mm
Nozzle stroke / force max. 300 / 52 mm / kN
Nozzle stroke max 200 mm
Oil tank capacity 460 l
Platen size h 750 mm
Platen size v 750 mm
Power: installed max 40 kW
Screw diameter 45 mm
Screw L/D ratio 24
Screw speed 290 rpm
Weight 9.500 kg
