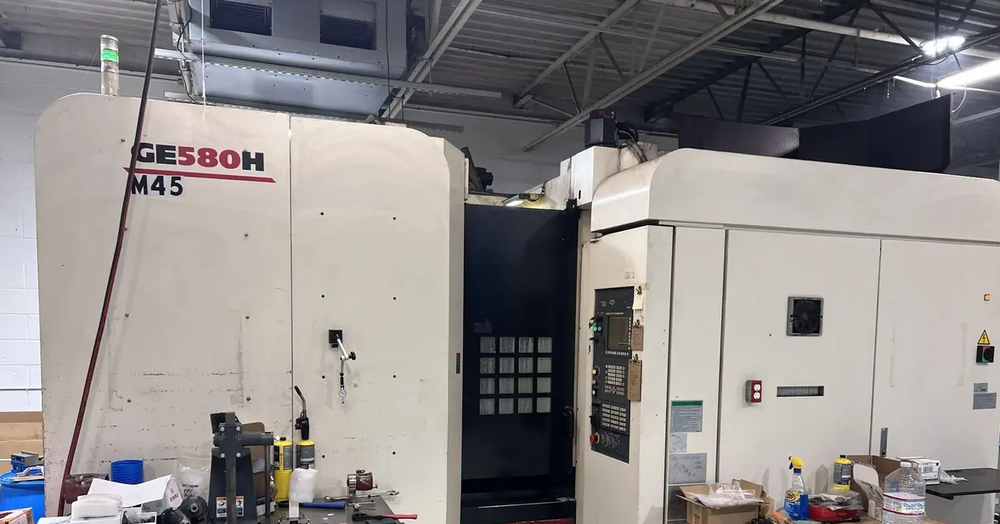

Enshu GE580H 4 Axis

X Axis Travel: 31.5"
Y Axis Travel: 31.5"
Z Axis Travel: 32.7"
Power: 60 HP
Spindle RPM: 10,000
ATC Capacity: 40
Spindle Taper: #50
Pallet Width: 500 mm
Pallet Length: 500 mm
Number of Axes: 3
Control: CNC (Fanuc 31iMB)
Machine Dimensions L x W x H: 232" x 129" x 123"
Machine Weight: 36,200 lbs.
Table Top to Spindle Centerline: 3.93"~35.4"
Rotary Automatic Pallet Changer
BIG-PLUS® / CAT 50 Spindle Taper
40-Tool Automatic Tool Changer
Ceramic Spindle Bearings
Table Centerline to Spindle Face: 5.9"~37.4"
Rapid Traverse (X/Y/Z): 2,362 IPM
Cutting Feedrate: 0~1,968 IPM
Feed Motors AC Servo: 7.4 HP (X/Y/Z)
Spindle Bearing Diameter: 4.33"
Spindle Power: 54 HP / integral full power
Low Range Spindle RPM: 500
High Range Spindle RPM: 2,500
Full 4th Axis (360,000 Positions)
High Volume Rolling Filter Chip Conveyor
Spindle Air Curtain
Spindle Oil Chiller
Coolant Thru-Spindle (256 PSI)
Spindle Flood Coolant
Bed Flush Coolant
Ceiling Shower Coolant
Refrigerated & Temperature Controlled Ballscrews
Spindle Ramp-Up Time: 3.8 seconds
Spindle Speed Override
Rigid Tapping Max RPM: 3,000
Feedrate/Rapid Traverse Override
Lubrication Type: Oil Air
Positioning Full Stroke (X/Y/Z): 0.00008"
Repeatability: ±0.00004"
Tool Magazine Capacity: 40
Maximum Tool Diameter: 4.7"
Maximum Tool Diameter Adjacent Pockets Empty: 9.4"
Maximum Tool Length: 17.7"
Maximum Tool Weight Full Speed: 33 lbs.
Maximum Tool Weight Reduced Speed: 55 lbs.
Tool Change Time Tool-to-Tool: 2.1 seconds
Tool Change Time Chip-to-Chip: 4.8 seconds
Pallet Size: 19.7" x 19.7"
Pallet Capacity per Pallet / Total: 1,763 lbs. / 3,526 lbs.
Pallet Index Minimum Full 4th Axis: 360,000 Positions
Pallet Index Time 90°: 2.0 seconds
Pallet Change Time: 10.0 seconds
LED Work Light
Three-Stage Stack Light
Totally Enclosed Splash Guard with Manual Operated Doors
Door Interlock
Inch/Metric Switchable Capability
2MB Total Program Memory
Automatic Corner Override
Tool Offset Memory Type C
200 Tool Offsets
Custom Macro “B”
Additional Macro Variables
Additional Registrable Programs
High Speed Skip
Machine Electrics: AC 200/220V ±10%, 3 Phase, 60Hz, 66 KVA
