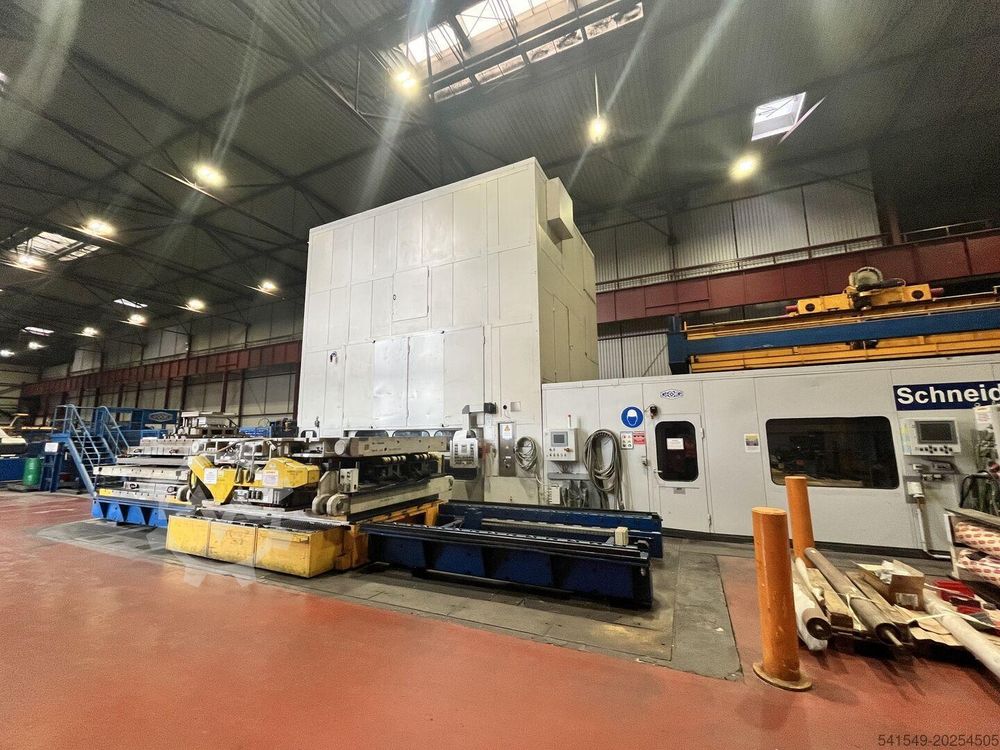

Erfurt PE4-HS630FS/E 630 T

Pressure 630 t
Stroke 300 mm
Number of strokes 10–75 Stk/min
Table size 3600 x 2200 mm
Passage width 4000 mm
Ram surface 3600 x 2200 mm
Column travel (side) 2000 mm
Ram adjustment 150 mm
Shut height (stroke down, adjust up) 1000 mm
Voltage 400 V
Height over floor 7600 mm
Depth of press under floor 2500 mm
Total power requirement 160 kW
Weight of machine 225 t
Dimensions of machine 750 m²
Complete feeding line included
Material width 300–1600 mm
Material thickness 0.5–3 mm
Two working tables that move in and out to the front
Stacking device with two pallets on the side
Two stacking pallets at the backside
Coil charging device for 3 coils with 25 t capacity
Decoiler Schnutz
Material feeder
Straightening machine
Roll feeder
