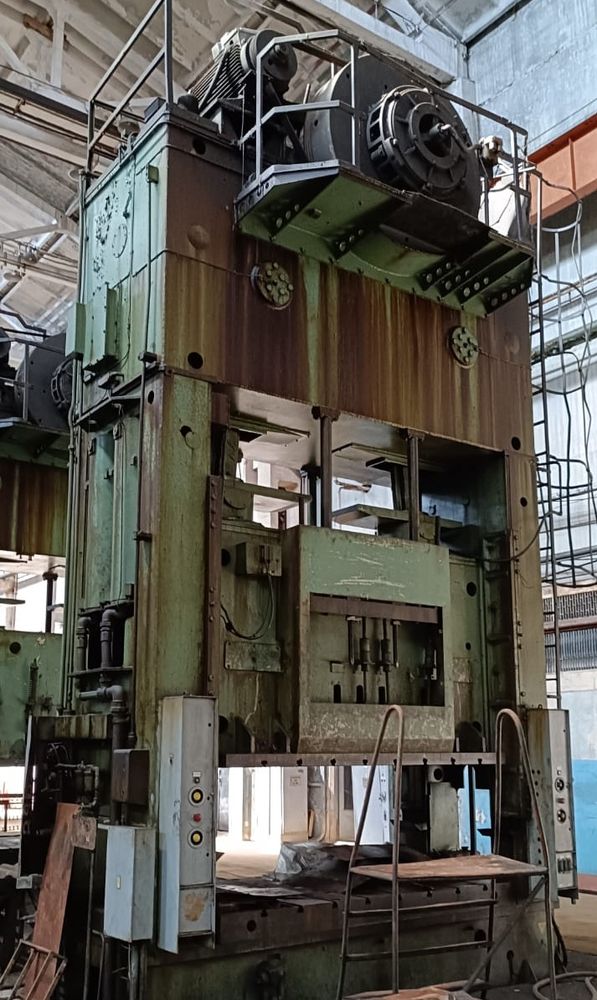

Erfurt PKZZ I 500.1 500 ton

Capacity: 500 ton
Strokes per minute: 14
Distance between columns: 2800 mm
Max distance between table and slider: 920 mm
Table size: 2800 x 1500 mm
Ram dimensions: 2750 x 1500 mm
Slider stroke: 500 mm
Slider adjustment: 500 mm
Hydraulic cushion force: 100 ton
Hydraulic cushion stroke: 200 mm
Motor capacity: 55 kW
Press weight: 85000 kg
Mechanical stamping press
Integrated hydraulic cushion system
Heavy-duty frame construction
Large bolster plate
High rigidity structure
Condition: Excellent
