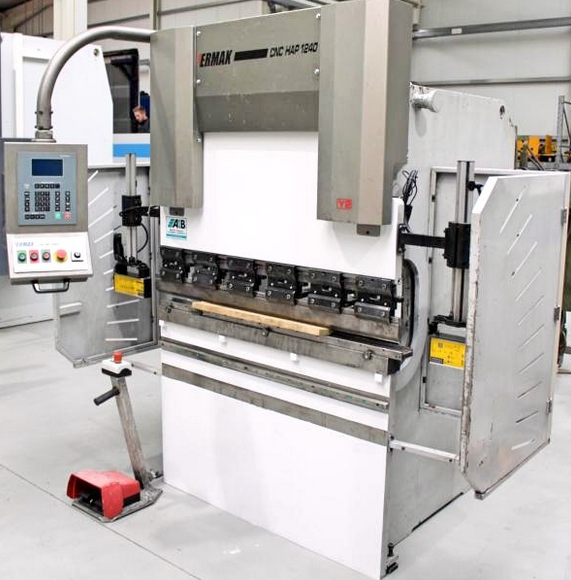

Ermak CNC HAP 1270x40 40 t

Press force 40 t
Bending length 1270 mm
Distance between columns 1000 mm
Throat depth 200 mm
Stroke 100 mm
Daylight 308 mm
Adjustment speed 150 mm/sec
Working feed 1–10 mm/sec
Return speed 100 mm/sec
Table width 100 mm
Table height 900 mm
Control DNC 60 PS
Oil volume 100 l
Voltage 400 V
Total power 5.5 kW
Weight 2750 kg

Features
CNC electro-hydraulic press brake
CYBELEC DNC 60 PS control
Swiveling control panel
Tool library
Program library
CNC motorized backgauge X-axis
X-axis travel 800 mm
Two manually adjustable backgauge fingers R+Z axes
Backgauge on ball screws
CNC-controlled axes Y1 Y2 X
Rehfuß upper tool system A with quick-change clamping
Crowning device in tool holder
4V universal die block with 60 mm die shoe
Two sliding support arms
Hydraulic system BOSCH/HOERBIGER
Electrical system SIEMENS
Rear light barrier
FIESSLER AKAS laser safety device
Movable double foot switch
Operating instructions PDF
