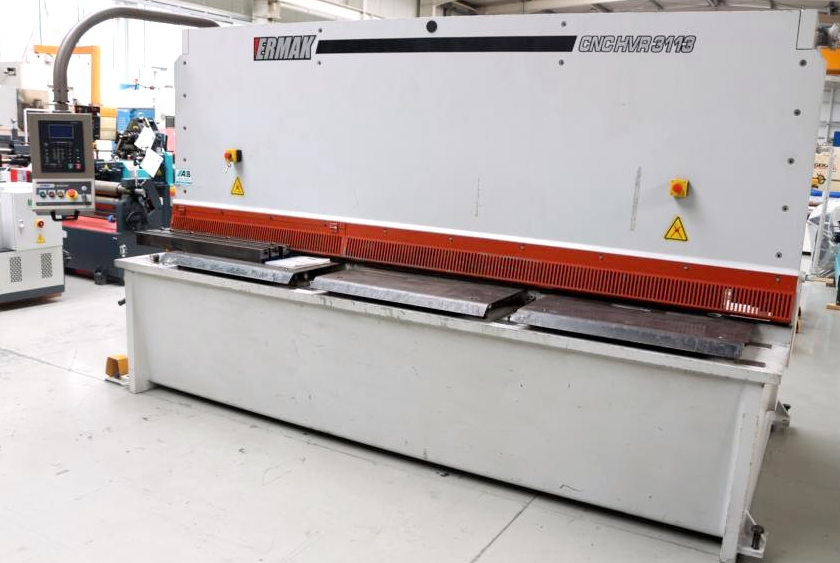

Ermak CNC HVR 3100-13

Sheet width: 3100 mm
Plate thickness: 13.0 mm
Stainless steel thickness: 8.0 mm
Hold-downs: 14
Strokes per minute: 11–20
Oil volume: 310 liters
Cutting angle: 0.05°–2.0°
Throat depth: 350 mm
Table height: 900 mm
Power requirement: 22.0 kW
Machine weight: 13400 kg
Machine dimensions (L × W × H): 5110 × 2570 × 2400 mm
Control: CYBELEC DNC 60
CNC electro-motorized backgauge
Backgauge travel range: 5.0–1000 mm
Backgauge positioning accuracy: 0.1 mm
Backgauge travel speed: 80 mm/sec
Backgauge swing-away function
CNC electro-hydraulic cutting gap adjustment
CNC electro-hydraulic cutting angle adjustment
Side stop with T-slot and mm scale
2 front support arms with T-slot and mm scale
Ball transfer units in front support table
Hinged finger guard with safety switch
BOSCH/HOERBIGER hydraulic system
SIEMENS electrical system
Light curtain (rear)
Rear sheet chute
Freely movable foot switch
CE mark
Operating instructions
