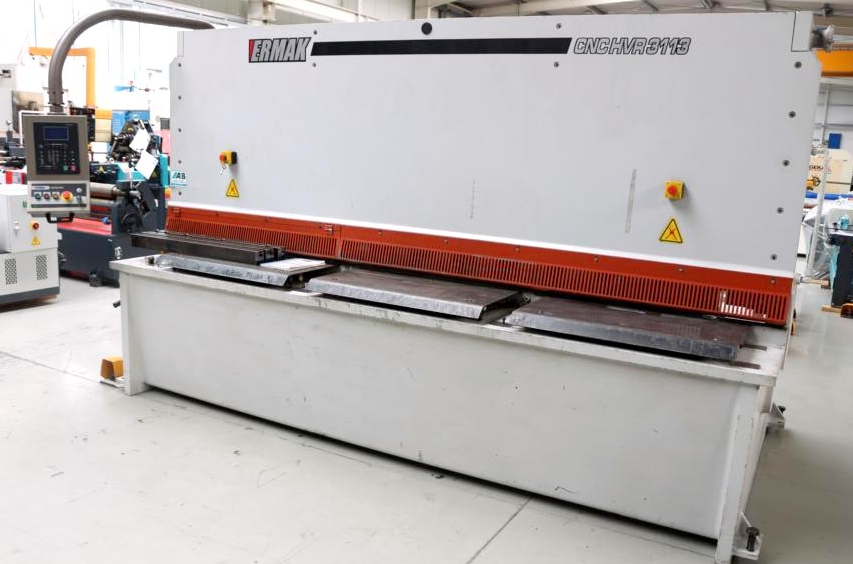

Ermak CNC HVR 3100-13

Sheet width 3100 mm
Plate thickness 13.0 mm
Thickness at stainless steel 8.0 mm
Down holder 14 pcs
Number of strokes 11–20 strokes/min
Oil volume 310 l
Cutting angle 0.05–2.0°
Throat 350 mm
Table height 900 mm
Total power requirement 22.0 kW
Machine weight approx. 13400 kg
Machine dimensions (L × W × H) 5110 × 2570 × 2400 mm
Control CYBELEC DNC 60 CUT
CNC electro-hydraulic cutting gap adjustment
CNC electro-hydraulic cutting angle adjustment
CNC electro-motorized backgauge travel range 5.0–1000 mm (X axis)
Backgauge on recirculating ball screws
Backgauge automatically folds up at maximum travel
Selectable retraction function (swing-away function)
Backgauge positioning accuracy 0.1 mm
Backgauge travel speed approx. 80.0 mm/sec
1x side stop with T-slot and mm scale
2x front support arms with T-slot and mm scale
Ball transfer units in the front support table
Hinged finger guard with safety switch
Hydraulic system BOSCH/HOERBIGER
Electrical system SIEMENS
Light curtain behind the machine (safety device)
Rear sheet chute
1x freely movable foot switch
CE mark
Operating instructions
