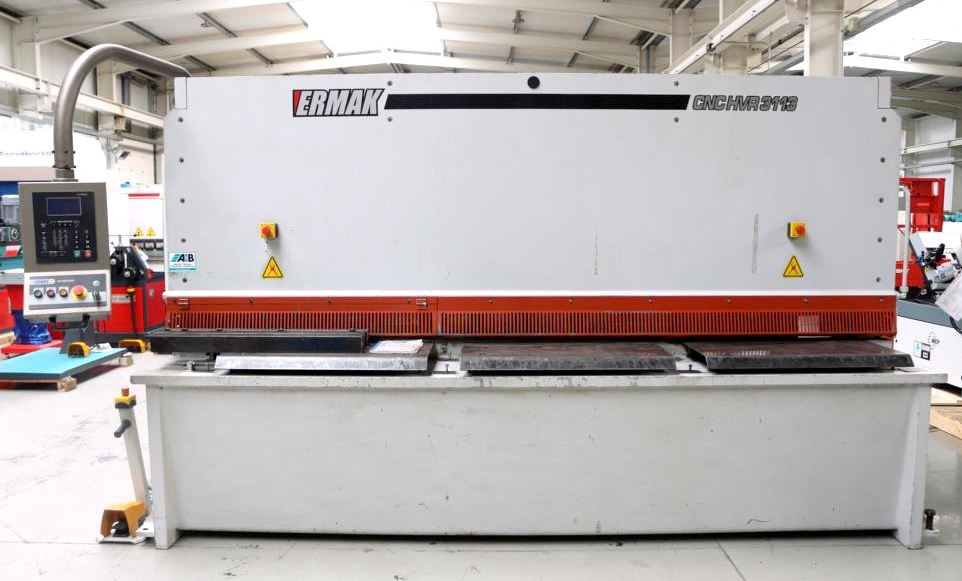

Ermak CNC HVR 3100-13

Sheet width: 3100 mm
Plate thickness: 13.0 mm
Thickness stainless steel: 8.0 mm
Downholder: 14 pcs
Number of strokes: 11-20 strokes/min
Oil volume: 310 l
Cutting angle: 0.05-2.0°
Throat: 350 mm
Table height: 900 mm
Total power requirement: 22.0 kW
Machine weight: 13400 kg
Machine dimensions (LxWxH): 5110x2570x2400 mm
Control: CYBELEC DNC 60 CUT
CNC electro-hydraulic guillotine shear with slide guides
CNC electro-hydraulic cutting gap adjustment
CNC electro-hydraulic cutting angle adjustment
CNC electro-motorized backgauge, travel range 5.0-1000 mm (X axis)
Recirculating ball screws on backgauge
Automatic folding at max travel for long cuts
Selectable retraction function (swing-away)
Backgauge positioning accuracy: 0.1 mm
Backgauge travel speed: approx. 80 mm/sec
1 side stop with T-slot and mm scale
2 front support arms with T-slot and mm scale
Ball transfer units in front support table
Hinged finger guard with safety switch
BOSCH/HOERBIGER hydraulic system
SIEMENS electrical system
Light curtain behind the machine (safety device)
Rear sheet chute
1 foot switch
CE mark
Operating instructions
