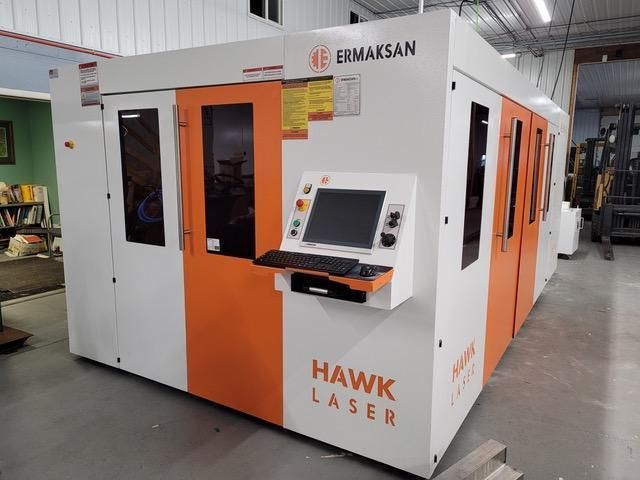

Ermak HAWK 1000 KW Beckhoff CP 2215

Machine Axis: 4-Axes (X, Y, Z & U)
Max Worksheet: 118.1" x 59.1"
Max Table Weight: 661 lbs

1000 Watt Resonator
Power Range: 10-105%
Laser Beam Quality @ Collimator: MM Mrad 1-2
Power Stability: 1-3%
Pulse Frequency Range: 5 kHz
Laser Wavelength: 1070 ±5 nm
Output Fiber Core Diameter: 50
Excitation: Laser Diode

Cooling Water Flow Rate: 4.2 Gallons Per Minute
Cutting Capacity Mild Steel (S235JR, S355MC): 5/16"
Cutting Capacity Stainless Steel (AISI 304): 5/32"
Cutting Capacity Aluminum (AIMg3): 1/8"
Cutting Capacity Brass (CuZn37): 5/64"
Cutting Capacity Copper (Cu-ETP): 5/64"

Assist Gas Mild Steel: Oxygen 0.5-6 Bar
Assist Gas Stainless Steel: Nitrogen 0.5-25 Bar
Assist Gas Aluminum: Dry Air 0.5-25 Bar
Cutting Head: Precitec Mini Cutter
CNC Control: Beckhoff CP 2215
CAD/CAM Software: Lantek Expert Cut
Network: Ethernet
Machine Dimensions: 201" x 104" x 71"
Machine Weight: 11,684 lbs
