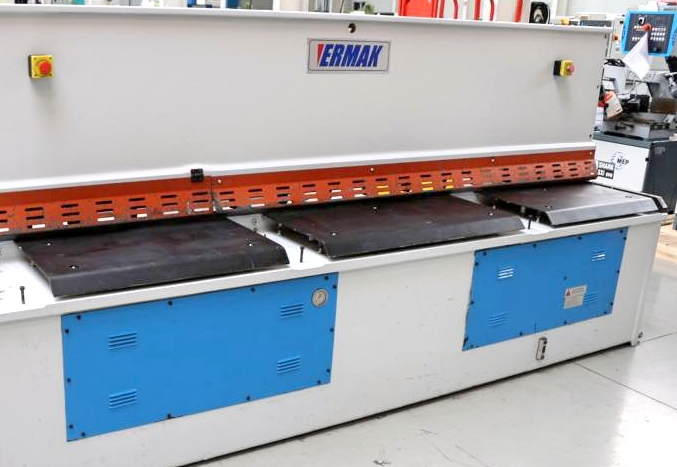

Ermak HGS 3100-8

Sheet width: 3100 mm
Plate thickness: 8.0 mm
Thickness at stainless steel: 6.0 mm
Down holder: 14 pcs
Max. strokes: 20 strokes/min
Cutting angle: 1.2°
Control: ELGO P9521
Work height max.: 800 mm
Oil volume: 150 l
Total power requirement: 15.0 kW
Machine weight: 7000 kg
Machine dimensions: 3900 x 2300 x 1600 mm

Features
Machine type: Plate Shear - Hydraulic
Control type: NC
NC electro-hydraulic swing beam shear
ELGO NC control unit P9521 front left
NC electro-motorized backgauge
Travel range: 5.0–1000 mm (X axis)
Recirculating ball screws
Positioning accuracy: 0.1 mm
Travel speed: 80.0 mm/sec
Manual lateral cutting gap adjustment
1x side stop with T-slot and mm scale
2x front support arms with T-slot and mm scale
Ball transfer units in the front support table
Hinged finger guard with safety switch
Bosch/Hoerbiger hydraulic system
Siemens electrical system
1x freely movable foot switch
2x front emergency stop buttons
Rear safety guard
Operating instructions (PDF)
