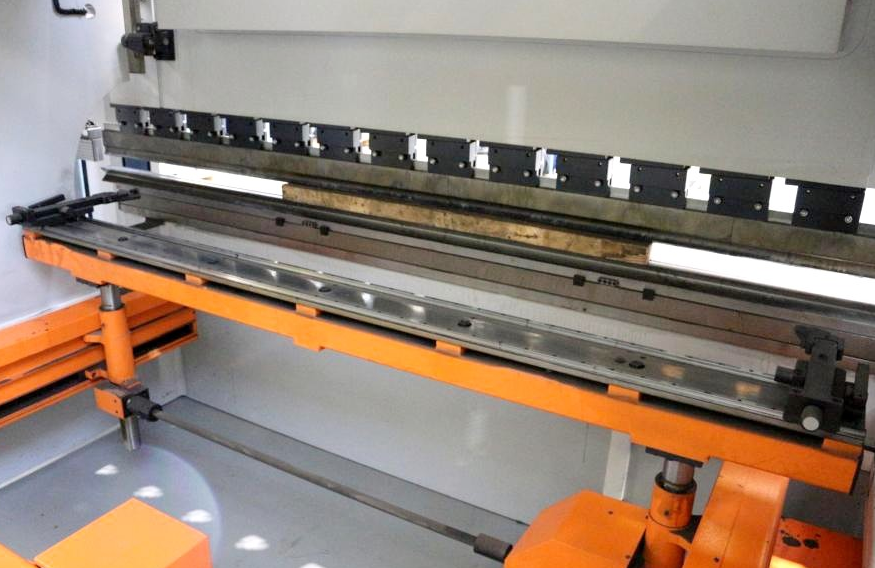

Ermak POWER BEND FALCON 3.135 135 t

Press force: 135 t
Bending length: 3100 mm
Distance between columns: 2600 mm
Throat depth: 410 mm
Ram stroke: 275 mm
Daylight: 550 mm
Ram approach speed: 180 mm/s
Working speed: 10 mm/s
Return speed: 135 mm/s
Table height: 900 mm
Table width: 90 mm
Number of working hours: approx. 40 h
Control: DELEM DA-58T
Oil tank capacity: 200 l
Total power requirement: 11.0 kW
Operating voltage: 400 V
Machine weight: 8186 kg
Machine dimensions (L x W x H): 4250 x 2150 x 2800 mm

CNC electro-hydraulic press brake
2D graphic programming
15" TFT color touchscreen
Bending sequence calculation
Product programming with real-size display
USB interface
CNC controlled axes Y1
CNC controlled axes Y2
CNC controlled axis X
CNC controlled axis R
CNC motorized backgauge
Backgauge travel X-axis: 800 mm
Backgauge travel R-axis: 250 mm
Backgauge traversing speed X-axis: 230 mm/s
Ball screw backgauge drive
Manually adjustable stop fingers
Upper tool ROLLERI PS 135.85-R08 system A
Quick-change upper tool clamping
Upper tool crowning device
Split universal bottom die ROLLERI M 460 R
Die shoe C 1050-R
Rear safety light barrier
Front laser safety system
Hydraulic components BOSCH HOERBIGER
Electrical components SIEMENS
Front support arms with sliding system
Freely movable double foot control
Operating instructions
