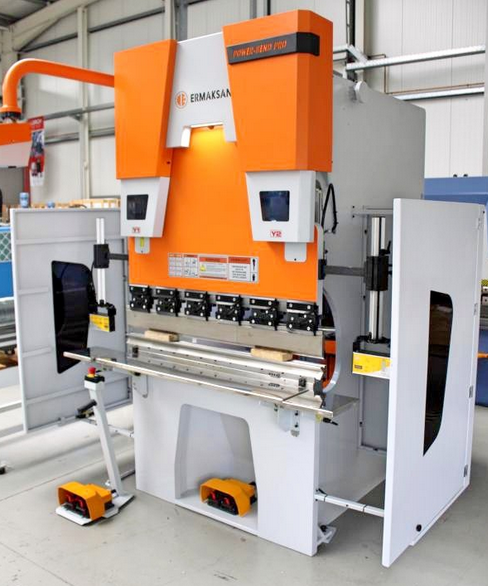

Ermak POWER BEND PRO 1270x60 S 60.0 T

ERMAK POWER BEND PRO 1270x60 S
Year of manufacture 2024

Furnishing:
- DELEM CNC control model DA-66T graphic/touch screen
* 2D graphical programming
* 17" TFT color screen with high resolution
* Bending sequence calculation
* Product programming and real size display
* USB interface
* intuitive, graphical entry of profiles
* Automatic calculation of features: tool safety zones,
Press force, bending tolerance, crown setting, stretched
Length, embossing force, flattening, automatic rounding calculation
* Radius programming
* Graphic tool and product library
* Collision monitoring
* 3D visualization
* 1GB memory
- Motorized backgauge with R-axis, on ball screws
- X = 800 mm R = 250 mm with 2 stop fingers
- controlled axes : Y1 - Y2 - X - R
- Deer foot upper tool with PS 135.85-R08, system "A" with quick-change clamp
- additional crowning device in the tool holder of the upper tool
- 4V universal die block M 460 R with die shoe 60 mm mount
- BOSCH/HOERBIGER hydr. components
- SIEMENS electrical system
- LEUZE light barrier behind the machine
- FIESSLER AKAS laser with FPSC protection device v.d. machine
- Swiveling control panel, mounted on the left
- Front, foldable sheet metal support
- Double foot control
- CE mark / declaration of conformity
- Operating manual: Machine and control in German
- Safety manual : press brakes

pressure: 60.0 t
chamfer lenght: 1270 mm
distance between columns: 1000 mm
column arm: 410 mm
ram stroke speed: 160 mm/sec
work speed: 10.0 mm/sec
return speed: 165 mm/sec
work stroke: 275 mm
dayligth: 530 mm
table height: 900 mm
table width: 90.0 mm
back stop - adjustable: max. 800 mm
oil volume: 150 ltr.
voltage: 400 V
engine output: 7.5 kW
Weight: 4320 kg
range L-W-H: 2250 x 1960 x 2750 mm
