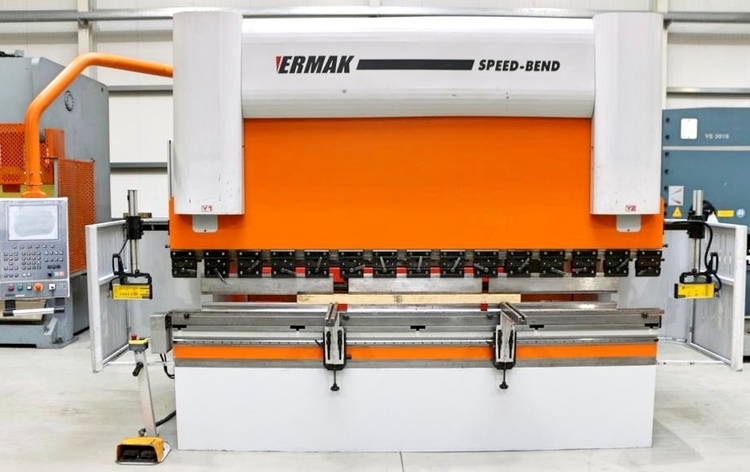

Ermak SPEED BEND 3.135 135 t

Pressure 135 t
Bending length 3100 mm
Distance between columns 2600 mm
Throat depth 410 mm
Ram stroke speed 180 mm/sec
Working speed 10.0 mm/sec
Return speed 135 mm/sec
Stroke 275 mm
Daylight 550 mm
Table height 900 mm
Table width 90.0 mm
Control ModEva 12S
Oil volume 200 l
Voltage 400 V
Total power requirement 11.0 kW
Weight 8800 kg
Machine dimensions approx. 4250 x 2150 x 2800 mm
CNC electro-hydraulic press brake
CYBELEC ModEva 12S CNC control unit
High-resolution screen
Operator language menu
Tool and product library
CNC controlled axes Y1
CNC controlled axes Y2
CNC controlled axis X
CNC controlled axis R
CNC crowning
CNC electro-motorized backgauge
Backgauge with R axis
Ball screws
Traverse path X 800 mm
Traverse path R 250 mm
Traversing speed X axis 230 mm/s
4 manually adjustable stop fingers
Upper tool PS 135.85-R08 system A
Quick-change clamp
Crowning device in the tool holder
Split universal die block M 460 R
Die shoe C 1050-R
Rear safety device light barrier
BOSCH/HOERBIGER hydraulic components
SIEMENS electrical components
FIESSLER AKAS laser safety device
2 front support arms with sliding system
Free-moving double foot control
CE mark
Operating instructions
