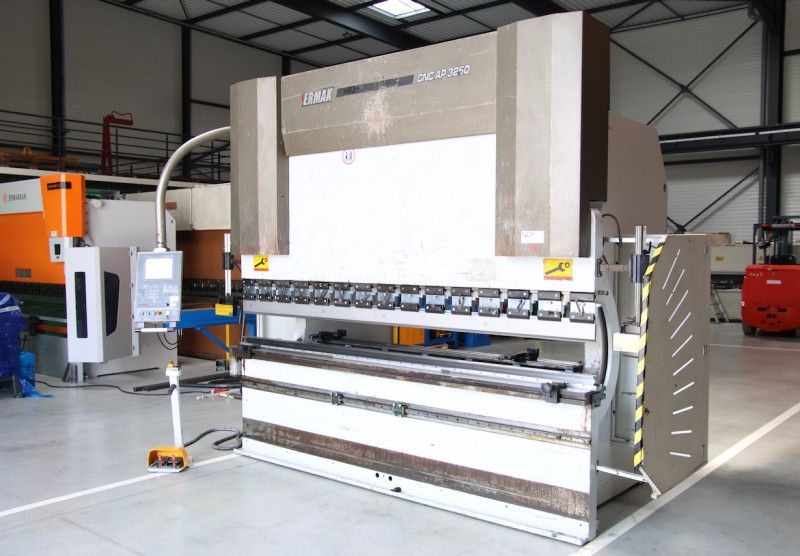

Ermaksan CNC AP 3100 x 250 250 tonnes

Press force: 250 tonnes
Folding length: 3100 mm
Distance between uprights: 2550 mm
Swan neck: 400 mm
Motorized backgauge stroke: 800 mm
Ram stroke: 250 mm
Main motor power: 18.5 kW
Table–ram opening: 517 mm
Approach speed: 100 mm/s
Working speed: 8 mm/s
Return speed: 90 mm/s
Working height: 900 mm
Table width: 300 mm
Machine dimensions (L x W x H): 4550 x 2350 x 2950 mm
Machine weight: 14950 kg
CNC control: Cybelec Modeva 10S
CNC axes: Y1/Y2/X/R
Manual Z1/Z2 adjustment
Protective laser
CNC bending table
New intermediates, punches, and dies
Above-ground configuration
