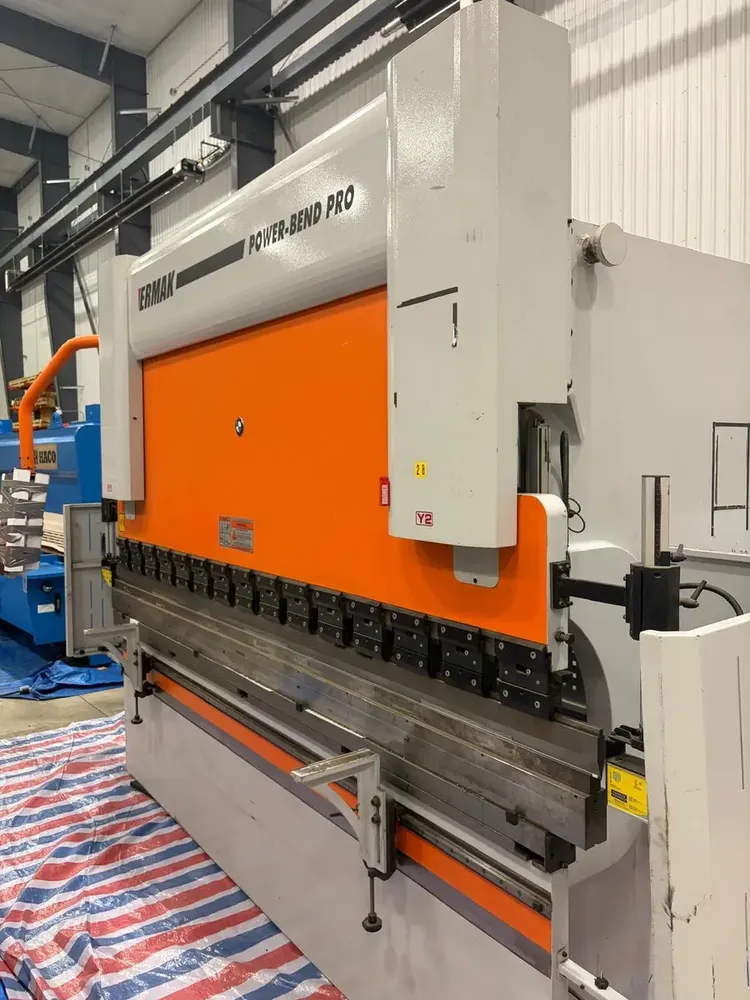

Ermaksan POWER-BEND PRO 3100X135 135 metric ton / 150 US ton
Ref :
2809756-3-GO
Condition :
Used
Manufacturer :
Ermaksan
Model :
POWER-BEND PRO 3100X135
Pressure :
135 metric ton / 150 US ton
Year(s) :
2012
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Bending length: 3100 mm (10 ft)
Hydraulic press brake
Y1 axis
Y2 axis
X axis
Cybelec DNC60S control
Free down speed: 7 in/sec
Bending speed: 0.394 in/sec
Return speed: 7.8 in/sec
Stroke: 11"
Back gauge X-axis stroke: 30"
Manual back gauge R-axis adjustment
Distance between housings: 100"
Manual crowning adjustment
Throat depth: 16.1"
Daylight: 20"
Voltage: 575 V / 3 Ph / 60 Hz
Acute punch
Die
Feissler light curtains
Heidenhain scales
Machine dimensions: 167" L × 80" W × 110" H
Machine weight: 17,500 lb
