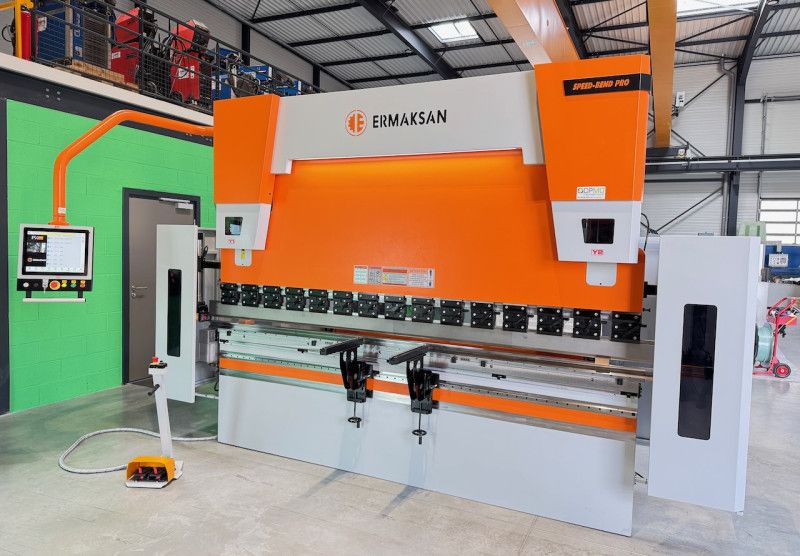

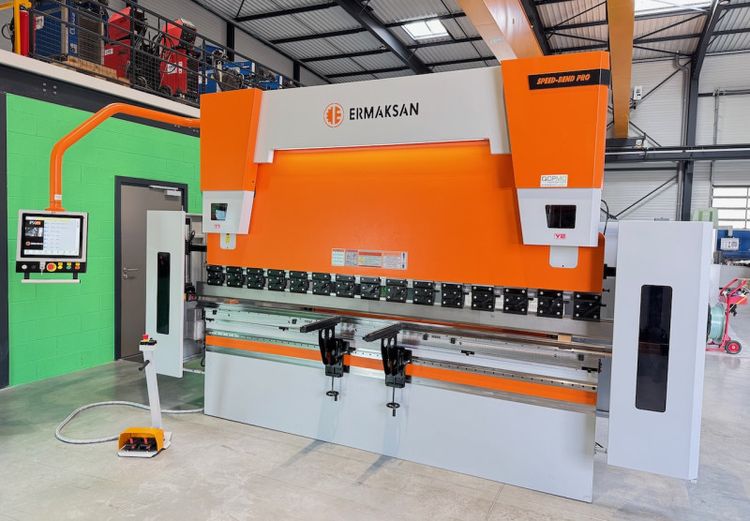

Ermaksan SPEEDBEND PRO 3100 175 175 t

Pressure: 175 t
Usable length: 3100 mm
Distance between uprights: 2600 mm
Throat depth: 410 mm
Stroke: 275 mm
Daylight: 550 mm
Working height: 900 mm
Approach speed: 180 mm/sec
Working speed: 10 mm/sec
Return speed: 190 mm/sec
Motor power: 15 kW
Weight: 9086 kg
Machine dimensions: 4250 x 2150 x 2800 mm
7-axis CNC
Y1 axis
Y2 axis
X axis
R axis
Z1 axis
Z2 axis
X5 axis
ER99 numerical control
3D graphic simulation
Bending process simulation
Tool simulation
Machine simulation
X5 motorized stop finger ±100 mm
Motorized backgauge 800 mm
Wila motorized crowning system
Front support arm with T-slot
Millimeter scale
Upper tooling
Lower tooling
Laser front guards on mobile supports
PLC
Start-up testing procedure
Supplied with hydraulic oil
2-year warranty
