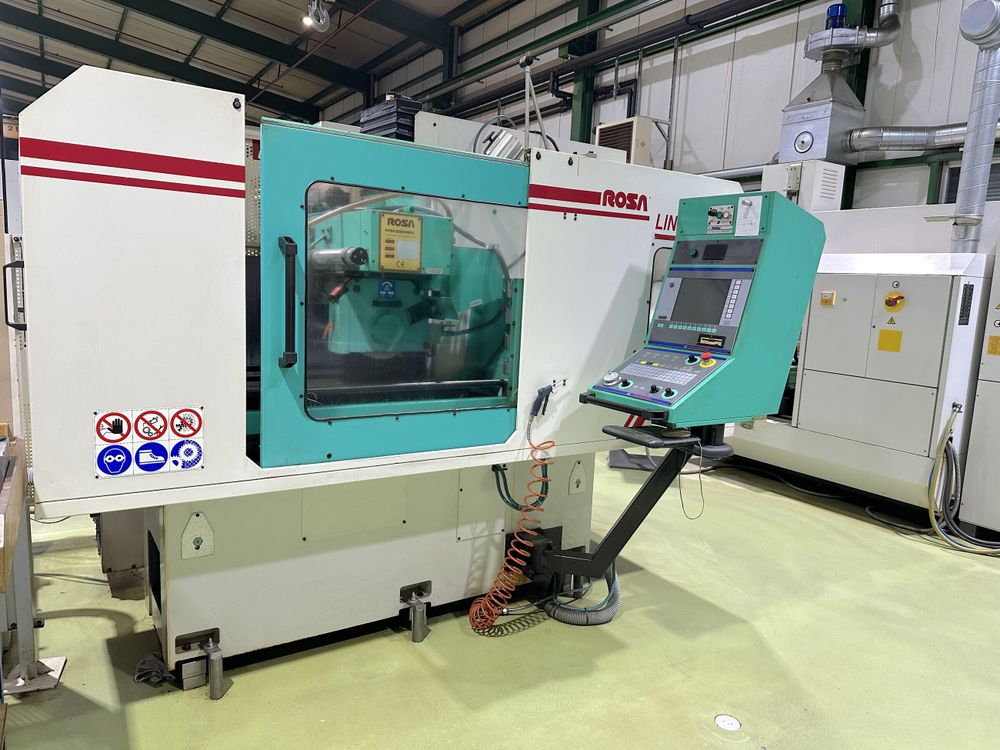

Ermando Rosa LINEA IRON 8.6CNC

Travel X (longitudinal): 950 mm
Travel Y (cross table): 550 mm
Travel Z (vertical): 480 mm

Control: ROSA SISTEMI ECS
Max. grinding length: 850 mm
Max. grinding width: 630 mm
Max. grinding thickness: 480 mm
Distance spindle axis to table: 680 mm

Table surface: 800x400 mm
Table stroke: 950 mm
Table speed: 1–40 m/min
Table load capacity: 1000 kg

Spindle motor power: 11 kW
Spindle speed: 1500 rpm
Wheel width: 80 mm
Max. wheel diameter: 400 mm
Wheel bore diameter: 127 mm
Total installed power: 16 kW
Machine weight: 6000 kg

Machine dimensions (LxWxH): 3010x2050x2330 mm
User manuals
Electrical diagrams
CE certification
Fully enclosed guarding
Ready for delivery
