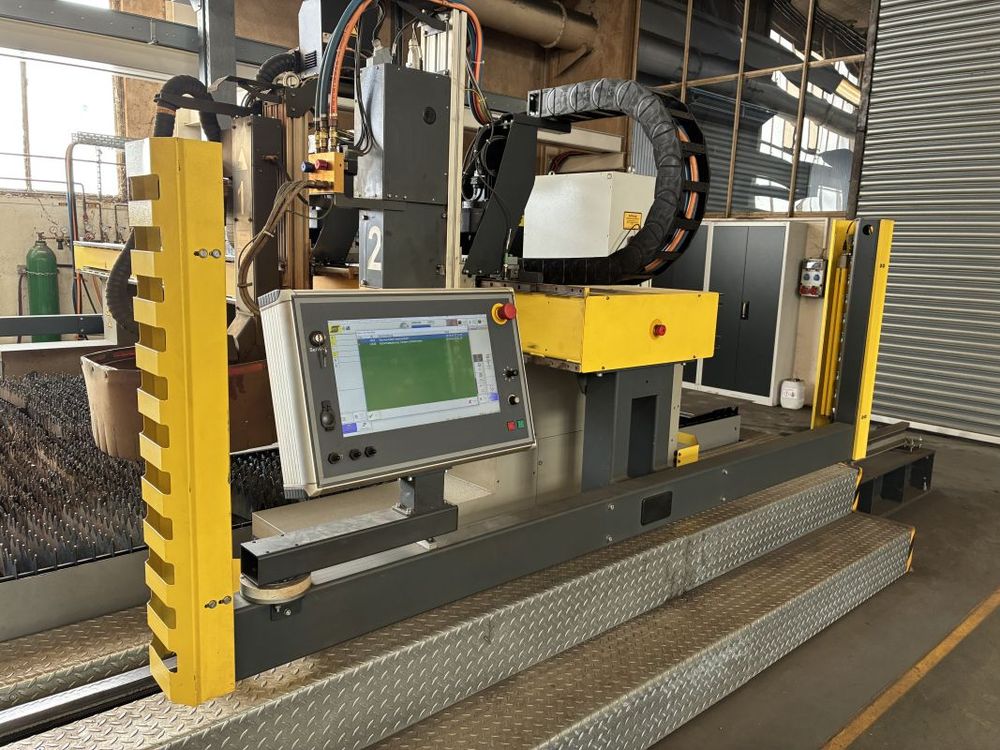

ESAB Suprarex HD 4000 Flame cutting machine

Technical data :
Machine size :
Track width: 4000 mm
Track length: 12000 mm
Workpiece support height: 700 mm

Working area :
Total working width: max. 2500 mm
Plasma phase working width: max. 2500 mm
Oxyfuel vertical working width: max. 2750 mm
Maximum working length: 9000 mm

Plate size :
Plate width: max. 2500 mm
Plate length: max. 9000 mm

Dimensions of the standard cutting table :
Table width: 3100 mm
Table length: 9270 mm

Tool stations :
Number of tools on the machine: 2
Number of cross drives: 2

Cutting processes:
Oxyfuel cutting (vertical)
Number of oxyfuel single torches: 1
Cutting range: 3-200 mm material thickness

Plasma cutting (bevel & vertical) :
Number of plasma bevel cutting stations: 1x DMX beveler
Cutting range (vertical) 6 - 40 mm (blue steel)
45° bevel range: 6 - 40 mm (blue steel)
Minimum plate thickness for Y-cut: 10 mm
Minimum plate thickness for K-cut: 20 mm
