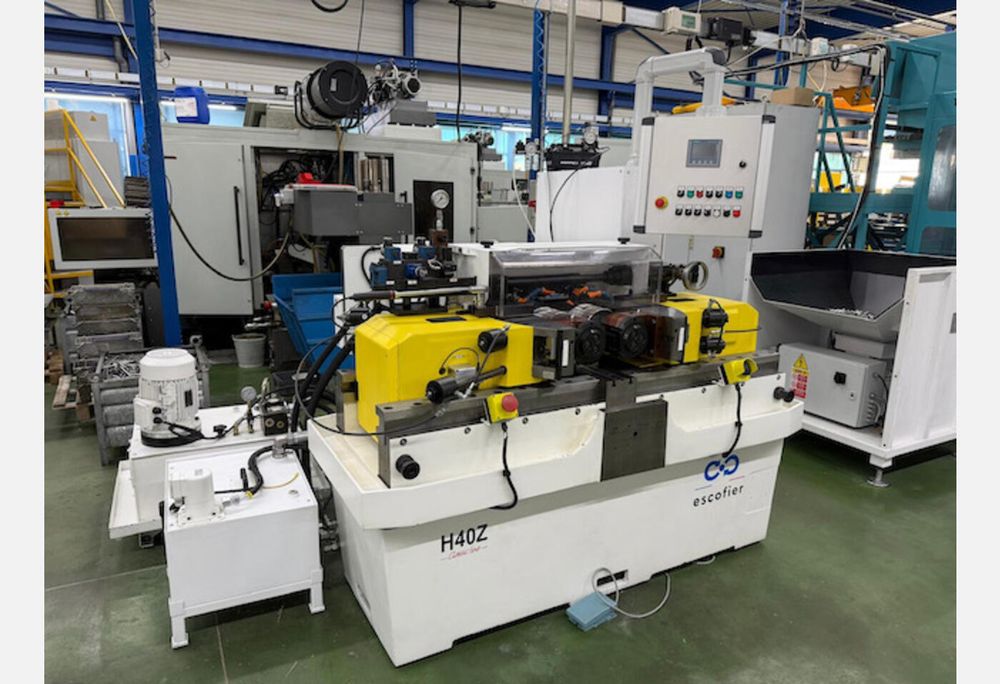

Escofier H40Z Press force: 40 tons
Ref :
2809590-3-AW
Condition :
Used
Manufacturer :
Escofier
Model :
H40Z
Short Description :
Press force: 40 tons
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Year: 2004 (Rebuilt 2024)
Diving parts diameter: 20–120 mm
Connected parts diameter: 20–80 mm
Maximum thread pitch: 12 mm
Maximum serration: 4 mm
Maximum rolling length (diving): 250 mm
Passage diameter: 80 mm
Rolling axis height: 135 mm
Centre-to-centre distance of work carriages (closed): 190 mm
Carriage travel: 10–175 mm
Shaft diameter: 80 mm
Rolling die diameter: 170–240 mm
Shaft motor power: 15 kW
Machine dimensions: 2310 × 2075 × 1570 mm
Machine weight: Approx. 5000 kg
Symmetrical feed
Tilting shaft for threading
Automatic control
New electrical cabinets
New electrical wiring
