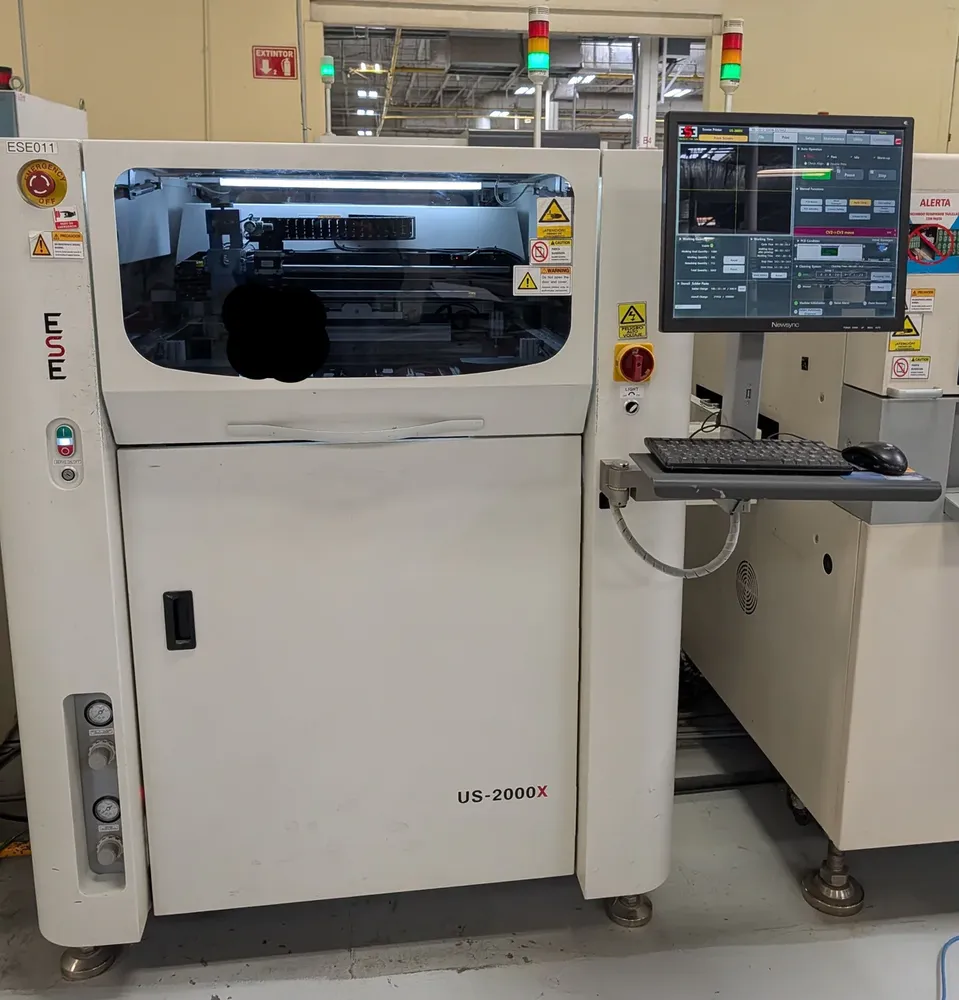

ESE US-2000X Screen Printer

ESE US-2000X Screen Printer
DOM: Nov 2022

Specs :
Advanced Features - 2D Inspection: Includes standard 2D solder paste inspection
for both the PCB and the stencil apertures.
Vision System: Equipped with a fast, accurate vision system that
uses up/down CCD cameras for fiducial recognition.
Cleaning System: Comes standard with an under-stencil cleaning system
(USC) that supports wet, dry, or vacuum cleaning.

Key Specifications
PCB Size: Supports boards up to 550x400mm
Cycle Time: Approximately 10 seconds.
Accuracy: Features an alignment accuracy of 12.5um at
6 sigma and a printing repeatabilityof +/-25um at 6 sigma.
PCB Thickness: Compatible with boards between 0.1 and 5mm thick.
Stencil Handling: Can handle standard stencil sizes of 23" and 29
