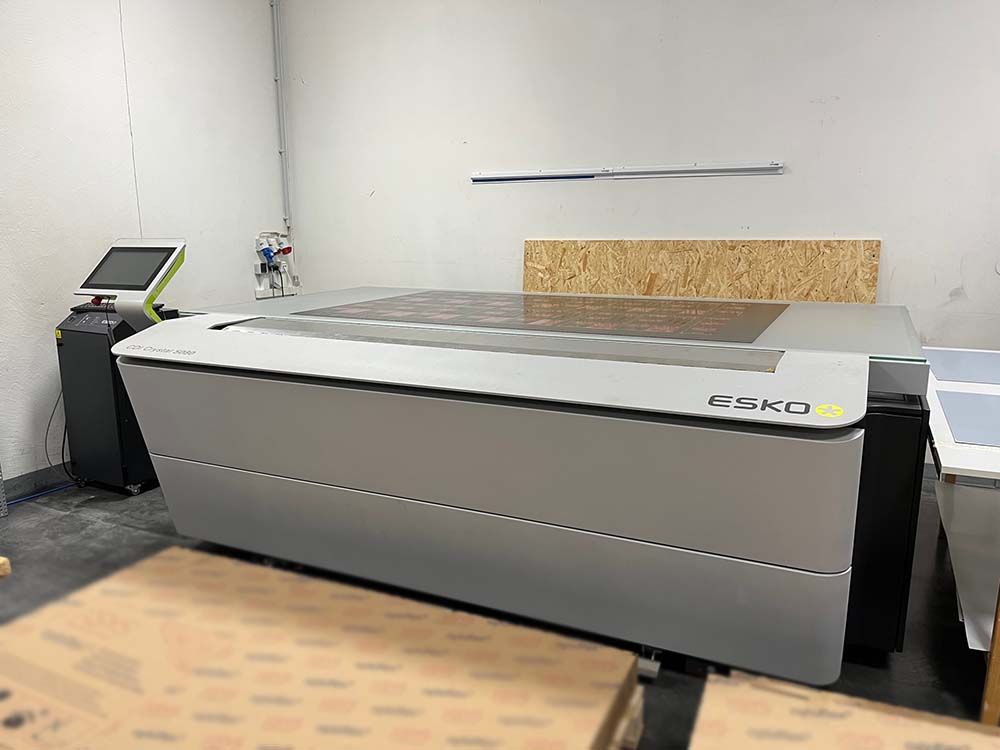

Esko CDI Crystal 5080

Flexo platemaking
Type of image:
External drum design
Cast granite machine base
High power Fiber Laser source, Laser Class 1 CDI.

Image quality:
Screen rulings up to 250 lpi, depending on imaging resolution
Halftone: 1-99%
HighRes Optics: fully variable from 2540 to 4000 ppi on job to job base

Rip and screening options:
Optional Imaging Engine
Industry standard PostScript/PDF RIP
Quality screening optimized for flexo (Circular, Double Circular dots) included in the RIP
HD Flexo Screening option for the finest print quality in flexo
Pixel+ option for best in class ink transfer and SIDs in flexo

Esko software:
Device Manager, Automation Engine, Imaging Engine, Flexo Screening (HD Flexo, Pixel+, Crystal Screening), Equinox

Plates:
All digital photopolymer plates
Usable plate thickness: 0.030" to 0.155" / 0.76 to 3.94 mm

Plate sizes: Up to 50”x80”/ 1270х2032mm or smaller
