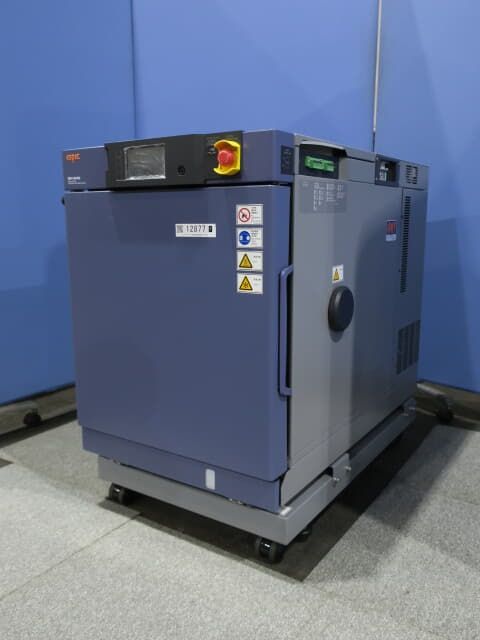

Espec SH-642

Compact Environmental Test Chamber

Specifications
Year of manufacture: 2022
Temperature range: -40°C to +150°C
Shelves: 2
Humidity range: 30 to 95%RH
Cable ports: Two φ50mm ports (one on the right side, one on the left side)
Interior dimensions: W400 x H400 x D400mm (excluding protrusions)
Casters: C-stand (W540 x D860 x H120mm) included
Exterior dimensions: W600 x D950 x H730mm

(Main unit only)
Communication function: ETHERNET
Weight: Approximately 130kg (Main unit only)
Recorder: None
Power supply: AC100V 1 phase 50/60Hz MAX. 17.5A
Programmable function: Yes
Operating time: Approximately 20,300 hours Emergency Stop Button

[Product Description]
This SH-642 is an Espec-manufactured constant temperature and
humidity chamber.
The temperature setting range is -40 to 150°C, and the humidity function
can be set between 30 and 95%RH.
Programmable operation is possible.
It is 100V, but the maximum current is 17.5A, so please check your power
supply equipment before purchasing.

[Device Status]
Instruction manual included
*A power cable is included, but a power plug is not.
*Two types are available: C-stand (stand height approximately 130mm)
and H-stand (stand height approximately 1130mm).
The H-stand can accommodate an environmental test chamber mounted
on a C-stand.
We also offer a two-unit set.
*We can also offer the main unit without the stand.
Please feel free to contact us for more information.
*We have multiple units in stock.
