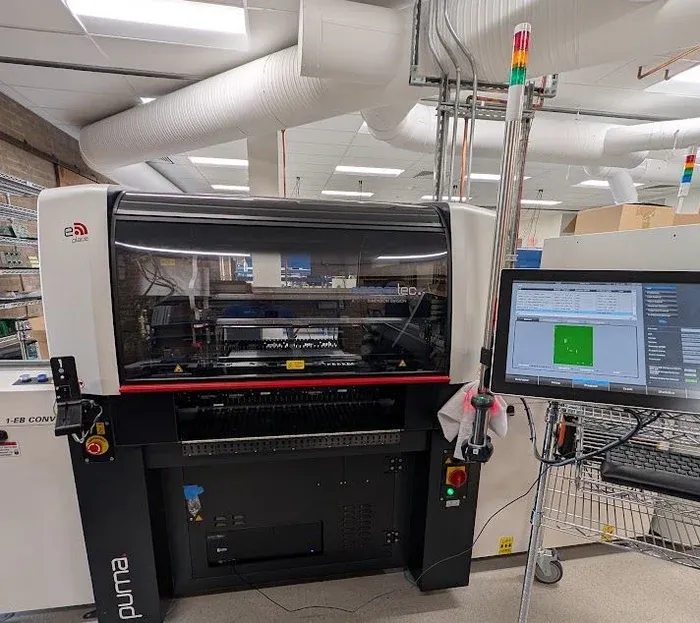

Essemtec PUMA2-PPD-C

ESSEMTEC PUMA2-PPD-C & Feeder Package - Barely used
Usage: Approximately 55 production hours.
This machine is equipped with Solder Paste Jet valve
DOM: 12/2023

PUMA2-PPD-C Info: Highly flexible pick & place system
with dispensing preparation, Inline version, placement area up to 560 x 610 mm, (22" x 24"),
CE mark, Cleanroom capable ISO7 / Class 10'000

Including:
- 2 x high precision pick & place axes,
- 3-stage conveyor system, manual adjustment and SMEMA standard
- Centering with Bottom Camera with programmable illumination,
- High speed feederbus for up to 160 intelligent feeder places,
- 3 active PCB support pins,
- 10 nozzles for components 0201 up to 80 x 33 mm
- 3-color signal tower
- Automatic needle-height calibration
- Purge station
- Calibration nozzle Z-axis height,
- Calibration set for placement axes,
- LED interior lightning,
- ePlace software system functions,
- Component library,
- Universal CAD conversion software
- Detection of bad PCB's in panels,
- Automated placing constraints
- Process optimization software,
- Direct help functions for the operator,
- Standard user level management

With:
(1) Tray Slider for PUMA Adds up space for 2 additional trays
CVU1 Component Verification Unit for 1 component.
Measures values of components before placing them
(Resistor, Capacitor, Inductor, Diode / polarity)
Feeder setup station EVO/hyQ installation directly on the machine.
1x slide in unit for feeder set up without production interruption
Wireless Barcode Scanner for 1-D and 2-D
Height measurement by Laser sensor for PCB
warpage compensation and placement/dispensing
on different height levels. Enhanced calculation algorithms
for shiny and mat surfaces. Extended range +/- 18mm from zero-level.
Solder Paste Jet Valve VDST with bayonet fluidic
Fast plug n' play changeover from different fluidics and settings.
Integrated controller and heater.
Fully implemented in ePlace software.
Needle heating for screw valve VSR-MV-01

Feeders:
40 x EV0-TF8/2-VO2 Intelligent, fully automatical,
high speed double 8mm EVO tape feeder incl. LED status indication
8 x PC-TF12 Intelligent, fully automatical 12mm HyQ tape feeder incl.
LED status indication
2 x PC-TF16 Intelligent, fully automatical 16mm tape feeder incl.
LED status indication
6 x PC-TF16-24 Intelligent, fully automatical tape feeder
adjustable for 16-24mm width incl. LED status indication
1x PC-VF60-V2 Intelligent hyQ vibratory feeder for components
1 x EVO-FR-CA- M-V02 Feeder Cart for hyQ and EVO- feeder on reels.
Capacity for up to 84x double-8mm feeder, means max. 168 feeder lanes.
