Essemtec

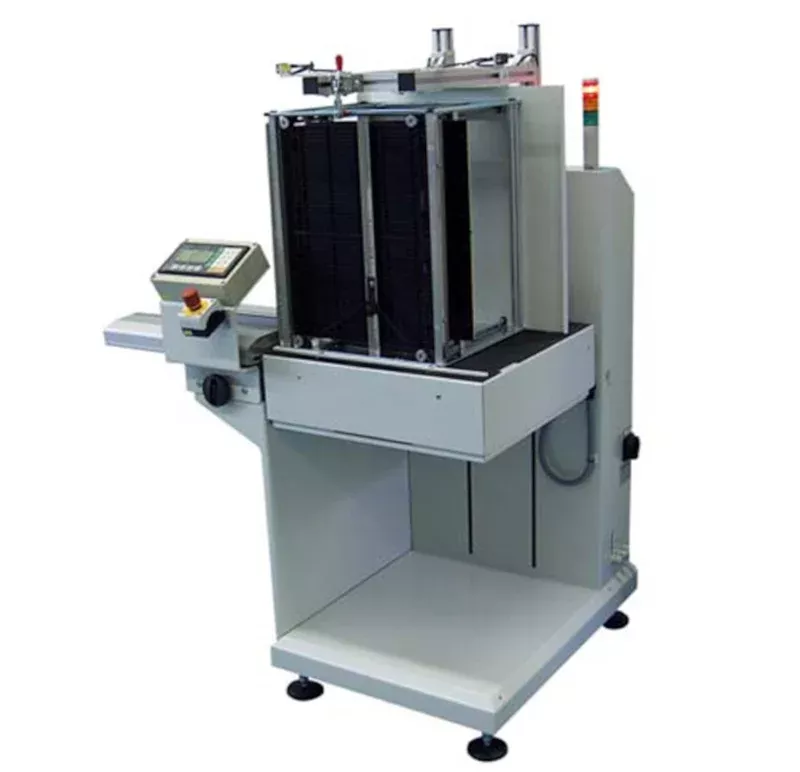

Description:
• Unloading PCB’s from a module into a magazine
• Manual magazine exchange
• Infeed track with pusher
• Individually controlled by P.L.C.
• Magazines with var. dimensions applicable •
Operation function keys by terminal display
• Communication via SMEMA standard
• Tower Light
• Pre-alarm

Specifications:

Loader LxWxH 1137x941x1462mm
Transport height 930 +35/-25 mm
transport width 50-460 mm
Transport speed 15 m/min
Cycle time > 10 sec. per board
Transport direction Left to right
Fixed rail Front, facing from operator
Selectable pitch A multiple of slots min. pitch distance 10 mm
SMEMA Included
control OMRON
Motor control Motor control board
operation By terminal display
software SYSWIN
Colour Ral-9002
Power consumption 375W
Power requirements 230V, 50Hz single phase with ground OR 110v 60hz
Compressed air 6 bar, dry, clean, non lubricated air 0.5Nm³/h
cables and wiring according NEN-EN 60204-1
Weight 175 kg
