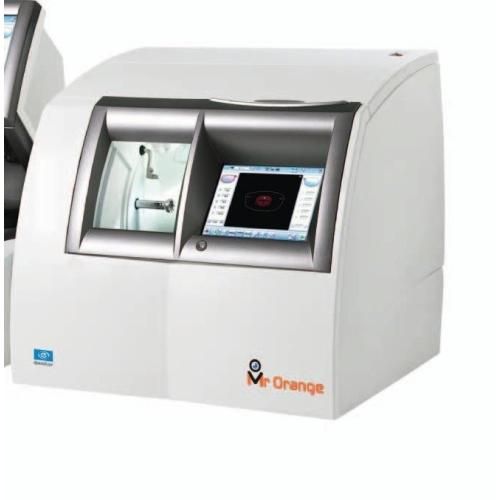

Essilor Mr Orange Edger

Features
Automatic and customisable cycles
3D chamfer with configurable trajectory
Groove with adjustable width and depth (in 0.05 mm increments)
Automatic drilling with adjustable angle
Back chamfer on front and/or rear
Fit-4-Frame technology: chamfer adjustable in height and width at 4 points
Polishing on flat edge and chamfer
Real-time control of cutting forces
Star Control process for hydrophobic lenses

Technical Details
Dimensions: W 570 × D 490 × H 550 mm
Weight: 65 kg
Power consumption: 1350 W
Power supply: 230V or 115V – 50/60Hz
Available versions: 3 grinding wheels or 4 grinding wheels depending on the material
Compatible materials: Glass, plastic, medium index, high index, polycarbonate, Trivex
Compliance: CE marking, ISO 16284 standard, OMA 3.07 compatible
Connectivity: Essibox network (ADSL), PC connection
Digital system: Auto-calibration, auto-diagnostics, statistics, technical history

Compatible Accessories
Essibox network connection module
Finishing cycle customisation interface
Remote diagnostics and maintenance tools
