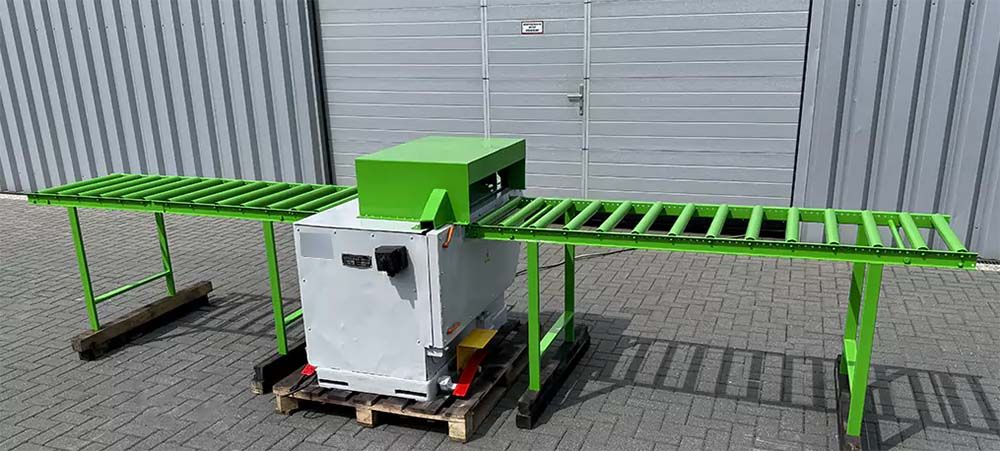

Esterer HKS

Cross-cut saw
Max blade diameter 500 mm
spindle diameter 30 mm
hydraulic disc stroke +
max cutting width 500 mm
max cutting height (in the middle, with a 500mm blade) 160 mm
main engine 4kW
dimensions of the top 715x1070mm
table height from the base 790 mm

roller tables 2szt
table dimensions:
feeder length/width 2000x640mm
receiving length/width 2000x640mm

machine dimensions length / width / height 1400x940x1070mm
total weight 480kg
