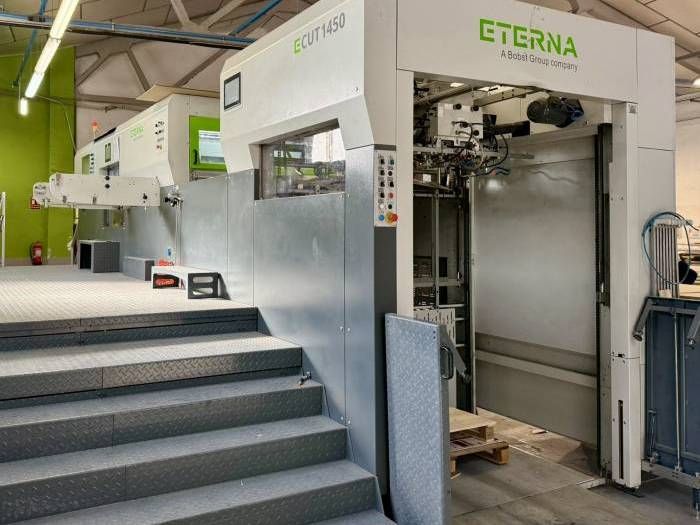

Eterna Ecut 1450

Max. Sheet Size: 1450 mm × 1100 mm.
Min. Sheet Size: 580 mm × 500 mm.
Max. Mechanical Speed: 6000 cycles/hour.
Max. Cutting Pressure: 400 tons.
Material Range:Paper/Cardboard: 80 gsm (0.1 mm) up to 2000 gsm (2 mm).
Corrugated Board: E, B, and C flutes, up to 4.5 mm thick

Key Operational Features :
High-Precision Feeding: Features a non-stop feeder with an automatic pile lift and suction heads adjustable for various materials.
Advanced Die-Cutting Section: Includes a pneumatic locking system for the die chase and motorized pressure adjustment
with a digital readout for easy monitoring.
Stripping Station: Equipped with a triple-action stripping system that ensures clean waste removal, even at high speeds.
Centerline System: Standardized tooling system that facilitates quick job changeovers and reduces make-ready time.
Safety Systems: Includes electrical and mechanical safety interlocks and an overloading safety device to protect the machine from excessive pressure.
