1/1

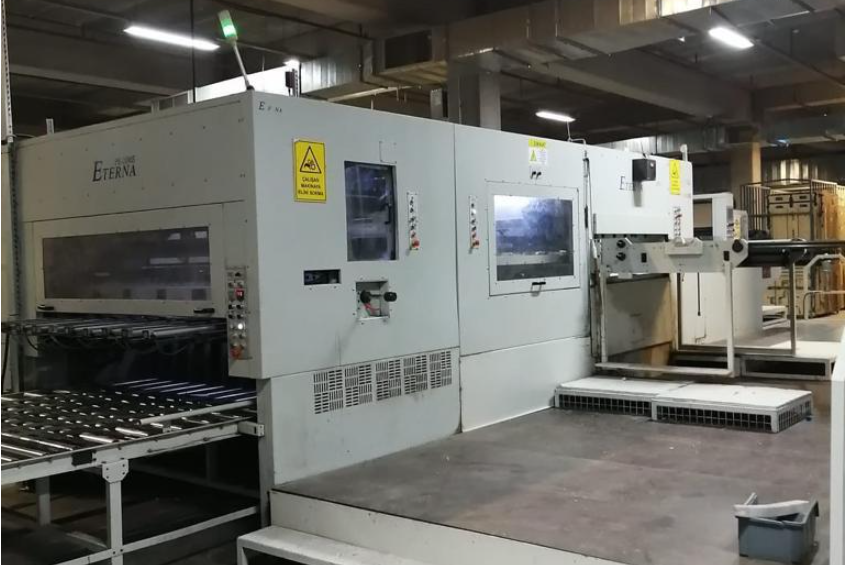

Eterna PE 2100S
Ref :
2740857-4-W
Condition :
Used
Manufacturer :
Eterna
Model :
PE 2100S
Year(s) :
2013
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
AUTOMATIC FLATBED DIECUTTING AND CREASING MACHINE WITH STRIPPING STATION
Maximum Sheet Size: 2100 x 1300mm
Minimum Sheet Size: 850 x 600mm
Maximum Cutting Size: 2080 x 1280mm
Inner Chase Size: 2110 x 1330mm
Maximum Mechanical Speed: 4500cycles/hour
Maximum Cutting Pressure: 500tons
Stock Range: E, B,C,A and AB flute corrugated board
Cutting Rule Height: 23.8mm
Minimum Gripper Margin: (Distance from first knife to paper edge) 15mm
Total Power Required: 50KW
Variable Speed Main Motor Power: 30KW
Air Pump Displacement: 0.7m¾/min
Electrical Power: 380V, 50Hz, 3-phase
Mobile Lower Platen Adjusting Range: ‡1.5mm
Net Weight of Machine: 48tons
Gross Weight of Machine: 58.5tons
Machine Dimensions: 11175(L)×6800(W)x2565(H)mm
