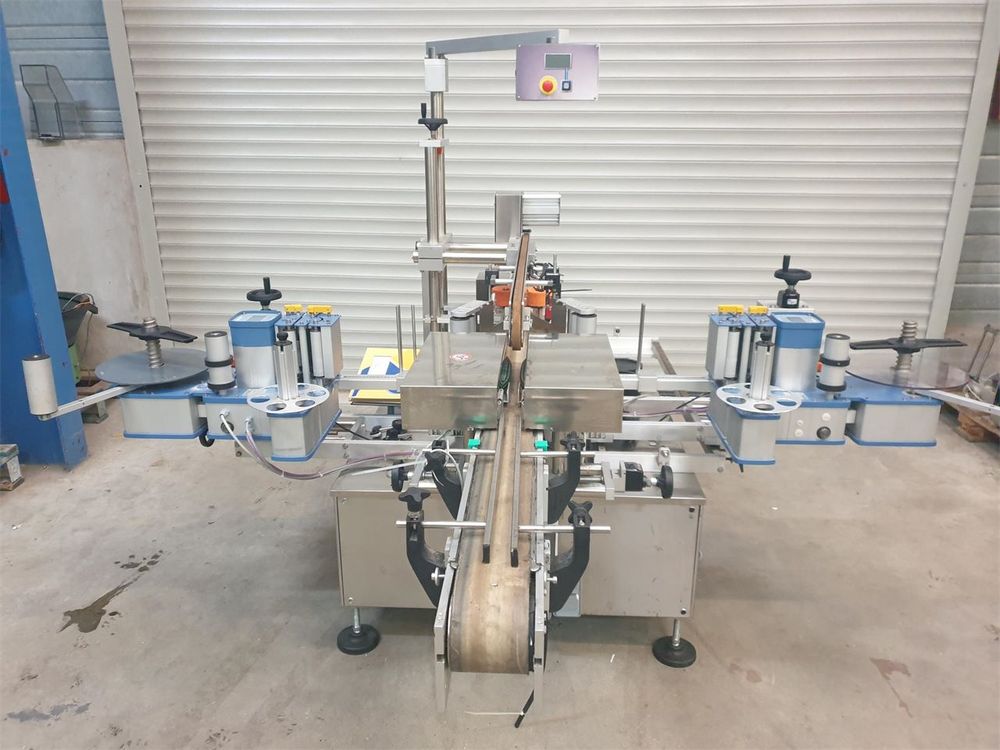

Etipack SISTEMA 5, LABELER

Weight : 600 kg
Dimensions : (L x W x H) 2.50 x 2.50 x 1.70 M
Automatic labeling machine for applying labels to flat bottles and aerosol cans.

Equipped with:
- PVC belt conveyor, 100 mm wide x 2500 mm long
- Automatic bottle stop at the infeed in case of a problem
- Bottle alignment station
- Motorized upper conveyor for holding bottles during labeling, 1300 mm long x 20 mm wide
- Bottle detection via photocell
- Label application station with two ENERGY 100 heads
- Label smoothing station on bottles using foam rollers.
- Control box
- General drive via variable speed motor
Mounted on a stainless steel frame

Maximum capacity:
- Bottle dimensions:
- Minimum length: 40 mm - Maximum length: 130 mm
- Minimum width: 28 mm - Maximum width: 90 mm
- Minimum height: 50 mm - Maximum height: 350 mm

- Label dimensions:
- Minimum length: 8 mm - Maximum length: 250 mm
- Minimum height: 8 mm - Maximum height: 120 mm

Maximum production:
Approximately 40 to 60 bottles/minute, depending on bottle shape and label dimensions

Total electrical power: 2 kW
Maximum compressed air pressure: 4 to 6 bar
